CUS600 M-12/EF | TDK-Lambda | Medical & Industrial Grade AC-DC Enclosed Power Supply, 600W Single Output, /EF represents the version with metal casing + built-in fan

CUS600 M-12/EF

CUS600M‑12/EF

I. Appearance and packaging information

Model suffix explaination:

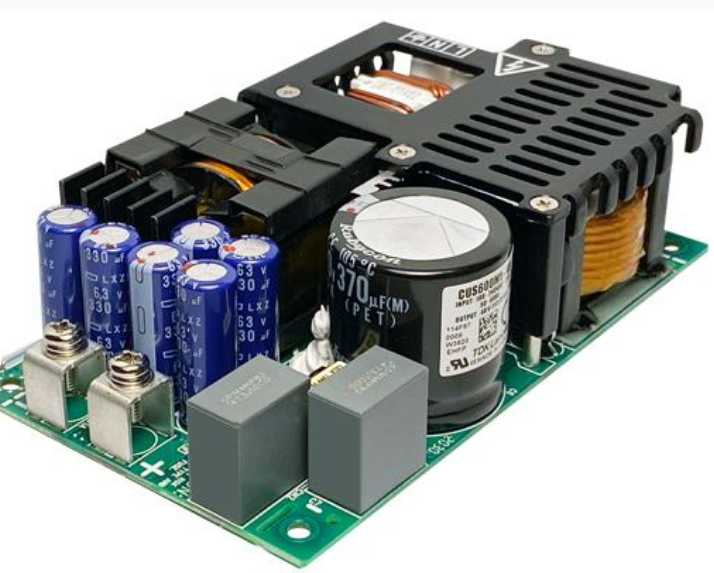

CUS600 M‑12: Open‑Frame open bare board, no casing, no fan

CUS600 M-12/EF: Enclosed Fan, metal casing, built-in cooling fan at the end, complete power supply TDK-Lambda...

Casing dimensions: 127 × 42 × 85 mm;Board version: 127 × 76.2 × 37mm (industry standard 3 × 5 inch board) TDK-Lambda...

Structure: metal closed shell, fan at the tail end; Terminal screw wiring, input AC, main output 12VDC, 5V standby auxiliary output terminal; Model and parameter labels are printed on the shell surface.

Warranty: 5 years warranty from the factory, packed in box, no need for additional shell processing TDK-Lambda...。

2. Core electrical parameters

form

project

Specification

Input voltage

85-265VAC, 47-63Hz, global wide power input TDK-Lambda...

output

12VDC, maximum 50A, forced air cooling 600W; Natural convection 400W (supports 600W peak) TDK-Lambda...

Output adjustable

11.7-12.9VD C, on-board potentiometer fine-tuning TDK products...

Auxiliary standby output

5V/2A, device standby power supply, still available when the module is turned off TDK-Lambda...

efficiency

Maximum 96%, typical full load 94.3%, TDK-Lambda...

Isolation level

Medical 2×MOPP, input-output 4000 VAC isolation, complies with medical regulations TDK-Lambda...

Operating temperature

-20 ℃ ~ +70 ℃ (reduced in high temperature environment)

Standby power consumption

Output power consumption in standby state is less than 0.5W TDK-Lambda...

protect

OVP over voltage, OCP over current, OTP over temperature, fan failure protection; Power-Good signal; Remote on / off, remote compensation Sense function TDK-Lambda...

Safety certification

UL / EN60601-1 medical certification, UL62368-1 ITE certification, Class B EMI, supports Class I / II ungrounded applications TDK-Lambda...

III. Core features of the product

Medical safety standard 2MOPP, at the same time compatible with industrial equipment, one power supply covers medical and industrial control two fields, strict leakage current control, suitable for human body contact equipment.

/EF version comes with its own casing and fan, which can be used as a whole without the need for customers to design additional casing and heat dissipation structures.

Double mode power: fan forced cooling full power 600W; Fanless natural cooling 400W short-term peak can reach 600W, to cope with the impact load scenario.

The standard configuration is 5V 2 A standby power, the main output is still retained when the whole machine is disconnected, and the MCU and sensor standby power is still retained.

With remote Sense remote voltage compensation, it solves the problem of voltage drop in the 12V output cable with large current; Supports module parallel expansion to increase output power.

The power consumption is low when it is unloaded, and it is suitable for the whole system that needs to sleep.

Note: The fan version has noise, and in scenes with high requirements for silent operation, open bare boards should be used for all-in-one fanless cooling.

IV. Typical Application Scenarios

Medical equipment: monitors, dental equipment, physical therapy equipment, medical testing instruments (meet 2MOPP medical insulation).

Industrial equipment: industrial test instruments, automation equipment, machine vision host, high-power 12V industrial control machine.

Communication and AI Hardware: Small servers, edge computing boxes, and high-power 12V system power supplies.

Laboratory equipment, charging equipment, and equipment that requires peak power impact load.

V. Distinguishing between the same model versions

CUS600 M-12: Open bare board, no casing fan, lower cost, customers do their own chassis cooling.

CUS600 M-12/EF: Closed-type finished power supply with fan, commonly abbreviated as -12/E, which is this model.

Output of the same series: 19V/28V / 32V / 36V / 48V, the power architecture is completely consistent, only the output voltage is different TDK-Lambda...
