I. Appearance and packaging information

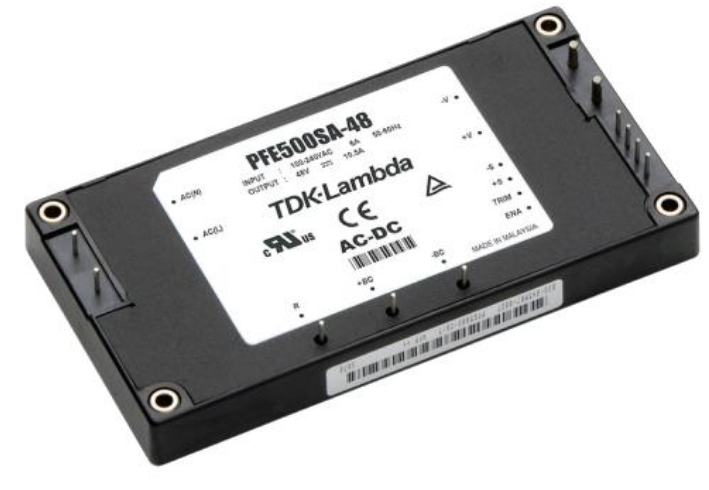

Package: Full-Brick standard module, closed metal base, through-hole pin PCB installation

Dimensions: 116.8 x 61 x 12.7 mm, thickness of only 12.7 millimeters, ultra-thin base, weight of about 200 grams TDK Produc...

Structure: black metal shell, metal base plate on the bottom for heat dissipation; Four-corner mounting holes, multi-pin leads on the side, model label printed on the top surface; The suffix / T represents the version with a through-hole installation, the standard product PFE500 SA-28 has no threaded hole TDK Produc...。

Packaging: bulk, MSL-1 no humidity limit, whole machine 5 years original factory warranty.

2. Core electrical parameters

form

project

Specification

Input voltage

85-265VAC, 47-63Hz, universal mains input

power factor

PFC active power correction, ≥0.95 TDK Produc...

output

28VDC, maximum 18A, rated 504W; Output adjustable 22.4-33.6V dc TDK Produc...

Typical efficiency

89% (full load) TDK Produc...

Isolation withstand voltage

Input-output 3000 VAC; Input - Substrate 2500 VAC; Output - Substrate 1500V DCTDK Produc...

Substrate operating temperature

-40°C ~ +100°C (high temperature needs reduced output)

Stabilization accuracy

Linear adjustment rate 56mV, load adjustment rate 56 mV

Protection function

OVP overvoltage, OCP overcurrent, OTP overheat protection, remote switch control

Safety certification

UL / CSA / EN62368-1, CE certification TDK Produc...

III. Core features of the product

Conductive cooling design: relies on the bottom metal substrate to dissipate heat, no need for fans, can be used in sealed enclosures, suitable for equipment enclosures with no convective heat dissipation, outdoor sealed equipment has obvious advantagesdocs.rs-on...。

Built-in PFC power factor correction to reduce grid harmonic interference.

Ultra-thin full brick, standardized pins, compatible with industry Full-Brick layout, easy to replace.

Supports remote on / off control, external control module can start and stop.

The output voltage can be fine-tuned with a resistor, suitable for the power supply requirements of 24V-28V industrial equipment.

Note: This module requires external input protection and EMI filtering components to fully meet the EMC standard. It cannot be used directly on the bare module. TDK Produc...。

IV. Typical Application Scenarios

Communication equipment: industrial switch, remote radio unit, communication base station closed cabinet power supply

Industrial equipment: industrial control cabinet, test instrument, closed-type industrial control machine

Outdoor equipment: outdoor cabinet, security, sealed box for unmanned equipment (no fan cooling)

Energy storage, 28V industrial system power supply, replace traditional 28V complete power supply

V. Comparison and differentiation of the same series

PFE500 SA-28: SA simplified version, does not support module parallel expansion, no auxiliary power output, low cost, mainstream large-scale selection;

PFE500-28: F enhanced version, supports multi-module parallel connection, with 12V auxiliary output, different pin definition, higher price;

PFE300 SA-28: Same package 300W version, output 10.8 A, power reduction versiondocs.rs-on...。

VI. Summary of advantages and disadvantages

✅Advantage

Conductive heat dissipation, the first choice of sealed fanless system, the substrate can withstand the highest temperature of 100 ℃, and has strong environmental adaptability.

Full brick industrial standard, complete certification, 5-year warranty, high long-term reliability of industrial equipment

Wide input voltage, PFC correction, 28V output adapter for a large number of industrial communication equipment
