SCL3301-D01Murata (Murata), industrial-grade three-axis MEMS tilt sensor, based on capacitive 3D-MEMS, ASIC directly outputs angle data, not ordinary accelerometer, focuses on static / quasi-static high-precision tilt measurement, widely used in construction machinery, structural monitoring, platform leveling.

I. Appearance and packaging form

Encapsulation: 12-Pin SMD pre-formed shell surface-mount package, gold-plated side pins, silicone gel internal filling, anti-vibration and anti-moisture

Dimensions: 8.6 × 3 × 3.3 mm, modular metal molded, suitable for SMT soldering go.murata ....

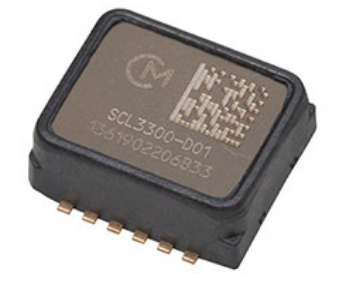

Screen printing: top surface printed with SCL3301-D01, Murata M Logo, QR code; Housing LPC engineering plastic, resistant to temperature deformation

Interface: standard SPI, 3.3V level; The original acceleration value + direct angle value can be output, without the need for the main controller to perform trigonometric function conversion.

2. Core electrical performance parameters

form

project

parameter

Measurement axis

X/Y/Z three-axis inclination

Inclination range

±90° Three-axis omnidirectional measurement Murata Man...

Acceleration range

Mode 1: ±1.2g;Mode 2: ±2.4g;Mode 3/4: ±10° tilt mode Murata Man...

Angle resolution

0.0055° / LSBgo.murata....

Angle noise density

0.001 ° / √Hz (ultra-low noise) Murata Man...

Zero-bias temperature drift

± 0.005 ° / °C, factory calibration stored in internal EEPROM Murata Man...

Configurable bandwidth

10Hz/40Hz/70Hz low-pass filter optional go.murata ....

Power supply voltage

3.0-3.6V (typical 3.3V)

Working current

Typical 1.2 mA;Standby 3-10μA

Operating temperature

-40℃ ~ + 125 ℃, industrial wide temperature go.murata....

Data output rate ODR

Up to 2000 Hz

Built-in function

Self-test, parity check, fault diagnosis, on-chip temperature sensor

Important note: SCL3300-D01 is suitable for static and quasi-static tilt; It is not suitable for high-speed dynamic motion, there is no gyroscope, and dynamic violent shaking scenes will introduce a large angle error.

III. Core features of the product

Direct angle output: gravity → inclination calculation is completed inside the chip, and the main controller directly reads the angle, reducing the workload of firmware development.

Ultra-low noise, low drift: 0.001 ° / √Hz, suitable for long-term monitoring of small angles, such as the monitoring of small deformation of bridges and tower cranes.

Mechanical damping structure: MEMS unit has built-in mechanical damping, suppresses high-frequency vibration interference, and outputs smoother in strong vibration environment of construction machinery Murata Man...。

4 kinds of work mode software switching: taking into account large g impact scenes, high precision small angle scenes, one set of hardware adapts to multiple working conditions Murata Man...。

Complete self-diagnosis mechanism: internal memory check, signal link fault detection, suitable for safety-related industrial systems.

Wide temperature range -40 ~ + 125 ℃, can be used in outdoor, engineering machinery high temperature cabin environment.

IV. Comparison with the same family and competitors

form

model

Location

Core differences

SCL3300‑D01

Three-axis inclination, angle output

Main model, ±90°, SPI, direct angle output

SCL3400

Biaxial inclination

Only X/Y axis, lower cost, suitable for 2D leveling scenes

Competitor SCA330

Old generation Murata inclination

The noise and temperature drift of SCL3301-D01 are weaker, and it is gradually being replaced.

Common 6-axis IMU (such as BMI088)

IMU with gyroscope

The software needs to calculate the tilt angle itself, and the static drift is greater than SCL3301-D01.

Selection tip: only choose SCL3301-D01 for static tilt; Motion posture and dynamic tilt angle are required, and a gyroscope IMU (SCH16T series) should be selected.

V. Typical application scenarios

Construction machinery: excavator, crane, high-altitude work platform inclined angle safety monitoring, leveling control Murata Man...

Structural Health Monitoring: Long-term monitoring of micro-deformation of bridges, dams, towers, and wind turbine foundations

Industrial platform: laser equipment, radar turntable, optical equipment leveling

Robot: static base level detection, AGV body tilt alarm

High precision level instrument, attitude reference base unit

VI. Supply Chain and Development Information

Status: Mass production and supply, long-term industrial life cycle

Evaluation board: SCL3300-D01-PCB official evaluation board, fast register debugging, performance verification Murata Man...

Interface: standard SPI, no need for special protocol, ordinary MCU can drive

Note: It can only measure the inclination caused by gravity. The motion acceleration will cause the angle distortion. It is not recommended to use this single in dynamic large motion scenes.
