IIS2MDCTR is a 3‑axis digital magnetometer (magnetic sensor) manufactured by STMicroelectronics (ST).

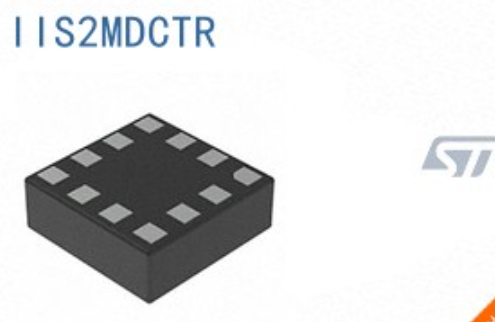

The IIS2MDCTR is a 3‑axis digital magnetometer (magnetic sensor) of the IIS2MDC series launched by STMicroelectronics (ST). The suffix TR stands for Tape&Reel packaging for shipment. It comes in LGA‑12 SMD package and is a Hall‑effect MEMS magnetic sensor. It measures 3‑D magnetic‑field intensity along three orthogonal X/Y/Z axes and outputs digital magnetic‑field data. Frequently combined with accelerometers and gyroscopes to form an IMU (Inertial Measurement Unit), it enables functions such as compass heading, attitude calculation and magnetic‑field detection. Featuring high accuracy, ultra‑low power consumption and wide magnetic‑field full‑scale range, this chip is targeted at industrial, IoT, wearable and smart meter applications and is currently in mass production.

1. Core Functions

3‑D Magnetic‑field Acquisition: It acquires magnetic‑field data on X, Y and Z axes simultaneously and outputs 16‑bit digital magnetic‑field data. It can measure the Earth’s magnetic field for electronic compass implementation and detect magnetic‑field variations generated by external magnets and electromagnetic devices.

Hard‑iron Compensation Support: On‑chip registers implement hard‑iron compensation to eliminate fixed magnetic‑field offset caused by PCB components and metal structures. It reduces compass‑calibration workload and improves heading accuracy. Both normal mode and advanced interrupt mode with hard‑iron correction are supported.

Programmable Magnetic‑field Interrupt Output: The INT/DRDY pin supports two configurable functions: the DRDY (Data Ready) signal notifies the MCU to read newly‑sampled data; the magnetic‑field threshold interrupt triggers automatically when the magnetic‑field of any axis exceeds the preset threshold, which can be applied to magnetic switches, tamper‑proof detection and magnet proximity detection. The interrupt supports pulse/latch modes, and signal polarity is software‑configurable.

Multiple Power‑mode Switching: High‑resolution mode, low‑power mode and single‑shot measurement mode are available for battery‑powered devices. The sensor enters sleep mode when continuous sampling is unnecessary, and single‑shot measurement can be triggered on demand. The maximum single‑shot sampling rate reaches 150 Hz, balancing power consumption and refresh rate.

On‑chip Digital Low‑pass Filter: Integrated on‑chip LPF (Low‑pass Filter) can be enabled via software to reduce magnetic‑field noise and improve output stability without extra power consumption. Built‑in offset cancellation further suppresses zero‑point drift.

Embedded Self‑test plus On‑chip Temperature Sensor: The self‑test function verifies sensor health during production or power‑on. The integrated temperature sensor supports temperature‑drift compensation for magnetic‑field outputs to enhance stability over wide temperature ranges.

Dual Communication Interfaces: Both I2C and SPI interfaces are provided. The I2C supports high‑speed mode up to 3.4 MHz, while SPI works as a standard slave. It facilitates connection with various MCUs such as STM32 and offers high hardware‑design flexibility.

3. Application Scope (Scenarios: Advantages and Limitations)

✅ Preferred Application Scenarios

IMU Modules and Electronic CompassPaired with 3‑axis accelerometers and 3‑axis gyroscopes, it forms a 9‑axis attitude sensor to output heading angles for UAV flight controllers, handheld devices, robots and AGV heading reference. Note: it measures magnetic field only and cannot compute attitude independently; tilt compensation with accelerometer data is mandatory. Compared with legacy magnetometers such as LSM303, the IIS2MDCTR delivers wider full‑scale range, built‑in hard‑iron compensation and better noise performance.

IoT and Battery‑powered DevicesIts low‑power characteristics suit battery‑operated products: portable location trackers, handheld test instruments and wireless sensor nodes. It performs sampling upon wake‑up and stays in sleep mode otherwise to extend battery life.

Magnetic‑field Detection, Magnet Sensing and Non‑contact SwitchesInterrupts detect magnetic‑field changes for magnet presence detection, non‑contact knobs, magnetic encoders and position sensing. An interrupt is triggered directly when an approaching magnet exceeds the magnetic‑field threshold, eliminating MCU polling and lowering overall system power consumption.

Tamper‑proof Detection for Smart Electricity / Water MetersWhen smart meters are tampered with by external strong magnets for energy theft, the IIS2MDCTR detects high magnetic‑field strength and triggers an interrupt to report tampering events. This is an officially recommended use case by ST.

Industrial Equipment Condition MonitoringMagnetic‑field monitoring for industrial equipment and position feedback for small automated equipment. The ‑40 ℃ ~ +85 ℃ wide‑temperature range fits general indoor industrial equipment.
