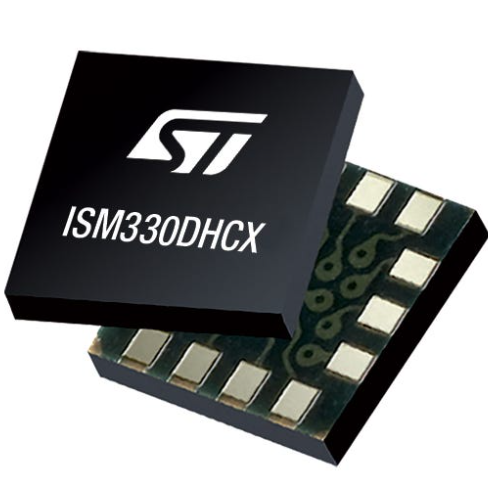

ISM330DHCXTR, STMicroelectronics, Industrial‑Grade 6‑Axis IMU Inertial Measurement Unit

Brand: ST (STMicroelectronics)

Device Type**: Industrial‑Grade 6‑Axis IMU (Inertial Measurement Unit), integrating 3‑Axis Accelerometer + 3‑Axis Gyroscope

Suffix TR = Tape & Reel packaging, MPQ=5000 pcs per reel

## Key Parameters

Package**: LGA‑14L, 2.5×3.0×0.83 mm, SMD surface‑mount

Accelerometer Full‑scale Range**: ±2 / ±4 / ±8 / ±16 g, 16‑bit ADC

Gyroscope Full‑scale Range**: ±125 / ±250 / ±500 / ±1000 / ±2000 / ±4000 dps (High angular rate for high‑speed rotation applications)

Output Interface**: I2C, SPI, auxiliary SPI supported

Supply Voltage**: 1.71 V‑3.6 V

Operating Temperature**: ‑40 ℃ ~ +105 ℃ (Industrial wide temperature range)

FIFO Buffer**: Up to 9 KB, reduces MCU reading workload

On‑chip Hardware Resources**

1. MLC (Machine Learning Core)

2. FSM (Finite State Machine) for custom motion event configuration

3. Sensor Hub for connecting external sensors

4. Built‑in temperature sensor and self‑test function

**Embedded Event Detection**: Free‑fall, wake‑up, tilt, 6D/4D orientation, single‑tap / double‑tap, pedometer

**Features**: Always‑On low‑power architecture. Eliminates frequent host‑MCU polling; motion judgment is processed inside the chip.

## Function

Output raw acceleration and angular rate motion data to the MCU. Leveraging on‑chip MLC/FSM, the chip locally implements motion recognition, vibration detection and attitude estimation, lowering host‑MCU computing overhead. Suitable for battery‑powered devices.

Difference from consumer‑grade IMU: Industrial wide‑temperature capability, high shock resistance, maximum gyroscope range up to 4000 dps. Optimized for high‑speed rotation and harsh working conditions.

 Application Fields

 Industry 4.0 (Primary Target Market)

1. Equipment condition monitoring & predictive maintenance: Vibration acquisition and fault identification for motors, reducers and fans

2. Attitude detection and motion tracking for AGVs and mobile robots

3. Industrial asset trackers, wireless sensor nodes

4. Industrial handheld devices, industrial PDAs

High‑end Equipment

1. High‑performance drones, gimbal image stabilization (OIS optical image stabilization auxiliary interface)

2. Attitude tracking for AR/VR devices

3. Smart warehouse & logistics asset monitoring

4. Medical wearable devices (pedometer, motion monitoring)

 Not Recommended For

General consumer bracelets and smartphones (high cost; use standard LSM series instead). Not for vehicle‑grade automotive applications. For automotive projects, select ASM330LHHTR.
