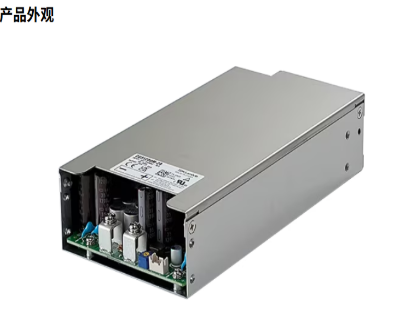

CUS1201M-24 TD K-Lambda (TDK's industrial/medical power supply brand) | 1200W single-output medical grade AC-DC chassis switching power supply

The CUS1200 M-24 is a 1200W single-output medical grade AC-DC chassis switching power supply. The CUS-M series is designed specifically for medical and high-end industrial equipment, and also meets the medical safety standard IEC 60 601-1 and the ICT equipment standard UL6236 8-1. Model Explanation:

Model Explanation:

CUS: Series name, medical / industrial dual-purpose closed power supply

1200: Rated power 1200 W

M: Medical grade

24: Rated DC output 24V

II. Core role

AC to stable 24V DC power supply will convert 85~255V AC to 24V DC, providing power to the main power circuit of the whole machine, with built-in active PFC, low harmonics, and strong grid adaptability.

Medical equipment safety isolation power supply 4000Vac Input - Output enhanced insulation, leakage current <250μA, meet the B/BF type medical equipment insulation, leakage safety requirements, avoid electric shock risk.

The multi-channel auxiliary monitoring and remote control is equipped with a 5V/2 A standby power supply, remote power on/off, remote compensation (Remote Sense), normal power PG signal, convenient overall system control and voltage compensation, long-line output without voltage drop.

Low noise, high-efficiency heat dissipation intelligent variable speed fan, light load low speed only 30dBA, full load 42dBA; Maximum conversion efficiency of 95.5%, small heat generation, compact body does not occupy cabinet space.

The full set of protection functions are built-in, including overvoltage OVP, overcurrent OCP, short-circuit protection, and overheat protection, which automatically lock the machine and protect the back-end load in case of failure.

3. Key electrical parameters

1. Input specifications

Input voltage: single-phase 85~265VAC full range, 90VAC for full power output

PFC active power factor correction, meets EN6100-3-3 harmonics standard

Standby power consumption: <0.6W (standby mode)

2. Output specifications (CUS120M-24)

Rated output: 24VDC

Rated power: 1200W

Rated current: 50A

Auxiliary standby output: 5V / 2 A (normal power, device standby control power supply)

3. Isolation and safety regulations

Input-to-output isolation voltage rating: 4000V AC

Ground leakage current: <250μA, complies with medical device standards

Certification: IEC / EN / UL 6060 1-1 (medical), UL62368 -1, CE, UKCA, RoHS

EMI: Class B Conduction + Radiation, the whole machine is easy to pass EMC certification

4. Environment and structure

Dimensions: 187 x 93 x 42.5 millimeters (42.5 mm high, ultra-thin 1.67 inches)

Cooling: built-in variable speed fan with temperature control

Operating temperature: -20°C ~ +70°C, linear reduction in high temperature range

Noise: 30~42 dBA

Protection: overvoltage, overcurrent, short circuit, overheat automatic shutdown

IV. Scope of application

1. Medical equipment (core product)

Dental treatment equipment, ultrasound imaging equipment, surgical instruments

Monitoring equipment, rehabilitation equipment, in vitro diagnostic equipment

Power supply for various types of BF medical equipment control and drive

2. Industrial Automation and Test Measurement

Industrial inspection instruments, semiconductor testing equipment

High-power servo and electromagnetic valve module power supply for automated assembly line

Laboratory High Precision Test Platform

3. Radio and television, audio and video communication

Broadcasting equipment, professional studio equipment, server cabinets

High-end communication base stations, industrial switches, high-power power supply

4. Other high-end equipment

Laser equipment, 3D printing equipment, large intelligent equipment

A high-power 24V complete system with medical safety insulation, low leakage current, and low noise is needed.

V. Selection advantage scenarios

The whole machine needs a power supply scheme of 1200W, 24V, medical safety regulations, low leakage current, low noise, remote control, compact and ultra-thin cabinet installation, and this model is preferred.
