SCH16T-K20 Murata (Murata), 6-axis high-precision MEMS IMU (3-axis gyroscope + 3-axis accelerometer), SCH16T series new generation high-performance version, mass production in 2026, for industrial-grade high-precision attitude and inertial measurement scenarios, pin software compatible SCH16T-K01/K01, can be directly replaced and upgraded

SCH16T-K20

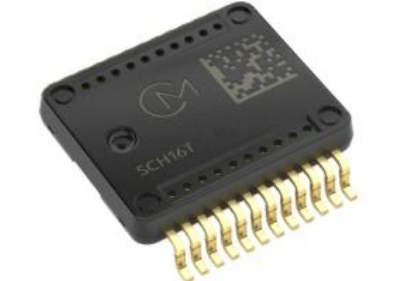

I. Appearance and packaging form

Package: SOIC-24 metal encapsulation, side-out gold-plated pins, 24 pins

Dimensions: 11.8 ×13.4 ×2.9 mm, modular surface mount package, large volume, anti-vibration package design Murata Man...

Surface marking: printed with SCH16T screen printing, Murata logo, QR code; Four-sided positioning holes, suitable for industrial equipment welding and assembly

Interface: SafeSPI2.0 digital interface, supports 16bit/20bit data output, with data ready, timestamp, and synchronous input functions

2. Core electrical performance parameters Murata Man...

form

project

parameter

Sensing axis

6DoF: 3-axis gyro + 3-axis accelerometer

Gyroscope range

±300 °/s

Acceleration measurement range

±8 g

Gyro zero bias instability

0.3°/h (typical)

Gyro noise density

0.0004 (°/s)/√Hz

Accelerometer noise density

33 μg/√ Hz, half the noise of K01/K 10

bandwidth

Gyro: 13-370Hz; Accelerometer: 13-290Hz multi-range optional

Power supply voltage

VDD：3.0‑3.6V；IO：1.7‑3.6V

Operating temperature

‑40℃ ~ +110℃

Communication interface

SafeSPI 2.0

Key upgrade point: K20 adopts a dual-differential MEMS accelerometer architecture, and the temperature drift and vibration rectification error (VRE) are significantly optimized; The gyroscope re-calibrates the temperature, and the zero-bias drift in the entire temperature range is significantly better than SCH16T-K01, suitable for long-term GNSS-free inertial calculation scenarios Murata Man...。

III. Core features of the product

Ultra-low noise, low temperature drift: the noise of the accelerometer is halved, the temperature deviation is smaller, the accumulated error of the attitude algorithm is reduced, and it is very friendly to inertial navigation dead reckoning.

Low VRE anti-vibration: dual-difference MEMS, suppress the measurement offset caused by vibration in industrial vibration environment, suitable for robots, gimbals and other strong vibration equipment.

Improve self-diagnosis: Built-in more than 200 internal state monitoring, fault self-diagnosis output, for safety-related industrial systems.

Pin and software compatibility SCH16T-K01/K01: The hardware does not need to be modified, and the firmware can be upgraded with a small amount of adaptation, reducing the iteration cost Murata Man...。

AEC-Q100 Standard Test Verification: According to automotive test standards, but for industrial applications, not for automotive safety systems.

IV. Horizontal comparison of the same series

form

model

Gyroscope range

Acceleration range

Differences in positioning

SCH16T‑K01

±300°/s

±8g

Standard version, general industrial attitude

SCH16T‑K10

±2000°/s

±16g

Large dynamic, high-speed rotating scenes

SCH16T‑K20

±300°/s

±8g

High-performance version, optimal noise and temperature drift, preferred for high-precision inertial navigation and robotics

V. Typical application scenarios

Industrial humanoid robot, mobile robot posture measurement, joint posture feedback

Unmanned aerial vehicle flight control, photoelectric gimbal anti-shake, camera stabilization

High-precision inertial measurement unit IMU, no GNSS inertial calculation positioning

Dynamic angle measurement, stable platform control, industrial motion tracking

VI. Supply Chain Information

Status: Mass production in the first half of 2026, samples and orders are now available.

Interface: SPI, the master needs to support the SafeSPI protocol; Murata provides SCH16T-K20-PCB evaluation board for early development and debugging Murata Man...

Competitor benchmarking: ST ISM330 DHCX, BMI088 high-end version; The advantage of K20 lies in the temperature drift and vibration suppression of accelerometers, and it is more inclined to industrial long-term attitude measurement.

For technical and business consulting, please contact: 18277896808
