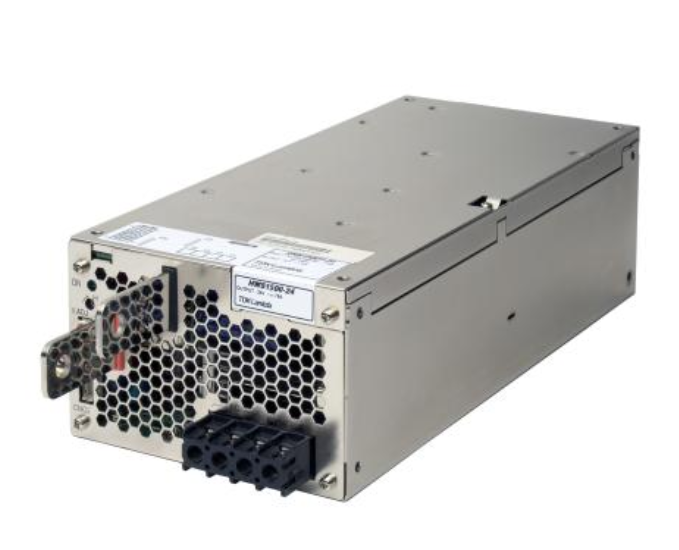

TDK-Lambda HWS1500-24 High-Power Enclosed AC-DC Industrial Switching Power Supply

Input Specifications

AC Input: 85～265VAC universal wide-range mains voltage, 47~63HzCompatible DC Input: 120～330VDCBuilt-in active PFC (Power Factor Correction), power factor ≥0.95 with extremely low grid harmonic interferenceInrush current at cold start: 20A@200Vac / 40A@100Vac

2. Core Output Specifications (Most Important)

Rated Output: 24V DC / 65A, rated power 1500WMaximum continuous load: 70A, max power 1680WShort-term peak surge current: 105A, peak power 2520W (for high inrush current during motor startup)Adjustable output voltage range: 19.2V ~ 28.8V DC (±20% wide fine-tuning range)Overall conversion efficiency: 88% typical

Application Scope

1. UAV Industry

• Power supply for complete ground stations of large industrial inspection UAVsCentralized 24V high-power power supply for ground consoles, on-board industrial computers (Advantech ARK series), image transmission transmitters and multi-channel displays.

• Power supply for UAV aging test racks and production toolingHigh-power DC source for UAV durability testing, motor aging and mass testing of BMS battery protection boards.

• Central control system for UAV cluster dispatching and main input power for charging cabinets.

2. Industrial Automation Equipment

High-power power supply for servo and stepper motor driversPower supply for control cabinets of AGV/RGV automated guided vehicles, robotic arms and palletizing robotsCentralized power supply for PLC control systems, machine vision industrial hosts and production line equipmentPower supply for semiconductor equipment and precision testing instruments (compliant with SEMI F47 standard for wafer processing equipment)

3. Energy Storage and Charging Pile Equipment

Power supply for main control and inverter modules inside portable high-power energy storage power suppliesAutomatic assembly equipment for small lithium battery PACKs and battery charge-discharge aging test equipment24V DC charging pile modules and outdoor high-power DC power supply systems

4. Other Heavy-Duty Industrial Scenarios

Laser equipment, high-power LED industrial lighting, auxiliary control units for rail transit, medical devices (models with suffix /ME are medical safety certified versions)
