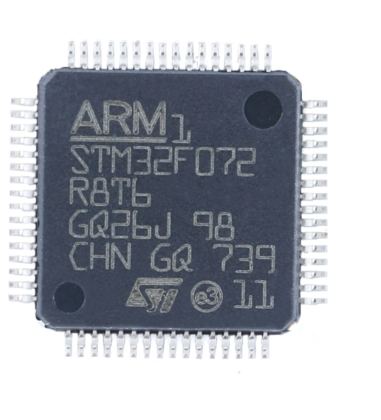

STM32F072R8T6, STMicroelectronics (ST) F0 Series Entry-level 32-bit General-purpose MCU with ARM Cortex-M0 Core

Key Core Parameters

Core: ARM Cortex‑M0, maximum operating frequency 48MHz

Memory

Flash: 64KBRAM: 8KB

IOs and Peripherals

Package: LQFP64, approximately 50 usable GPIOsCommunication Interfaces: CAN bus, USB Device, I2C, SPI, USART, hardware UARTAnalog Peripherals: 12-bit ADC (up to 16 channels), 2-channel DACTimers: Multiple advanced timers supporting multi-channel PWM output (essential for motor driving)

Supply Voltage: 2.0V ~ 3.6VOperating Temperature: Industrial grade, -40℃ ~ +85℃

Key Advantages

Integrated CAN and USB interfaces, a rare dual-function combination among F0 series devices at the same cost bracket, which is its biggest selling point.

III. Application Scope

1. UAV-related Applications (Key Target Industry)

• Main controller for UAV battery BMS protection boardsUsed for cell voltage sampling, cell balancing, overcharge & overdischarge protection, and uploading battery status via CAN communication. The built-in CAN peripheral makes STM32F072 an ideal choice.

• Auxiliary sub-modules for drones:Small-scale driving of gimbal motors, indicator light control, remote controller keypad boards, peripheral data acquisition modules for ground stations.

Note: It cannot serve as the main flight controller due to insufficient computing power. Main flight control MCUs usually adopt STM32F4/H5/H7 series, while F072 is only applied for secondary auxiliary control.

2. Industrial Automation Scenarios

• Miniature sensor acquisition modules, 4‑20mA transmitters

• Simple driver controllers for stepper / BLDC small motors

• CAN bus slave devices, industrial IO expansion boards

3. Consumer Electronics & Power Equipment

• Control boards for charging piles, small PCBs of portable energy storage power supplies

• USB peripheral devices (USB-to-serial converters, data collectors)

• Small home appliance controllers, valve actuators, smart door locks

4. Instruments & Meters

Simple temperature and pressure measuring instruments, portable testing devices, circuit boards for environmental monitoring probes
