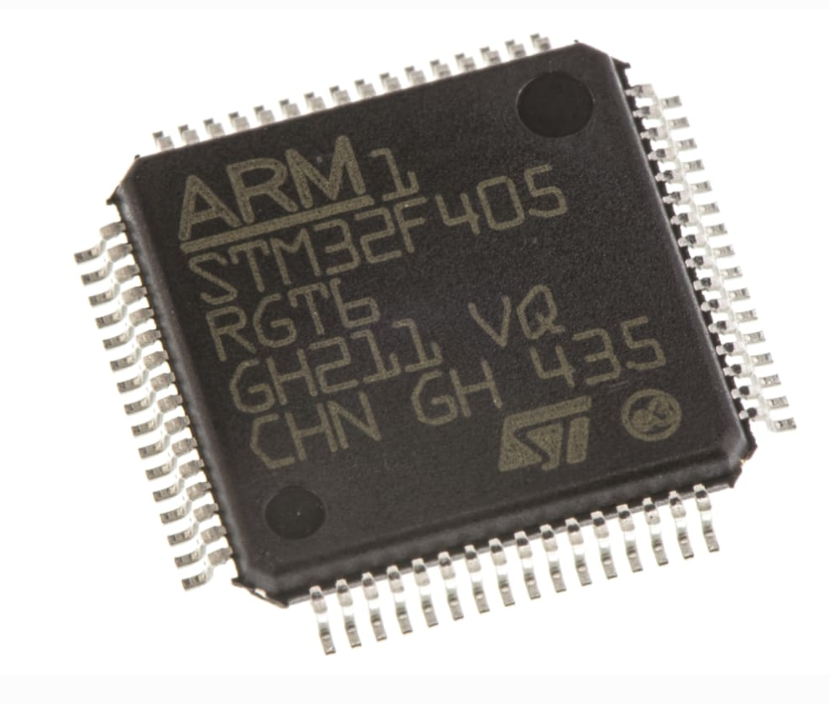

STM32F405RGT6 | STMicroelectronics 32-bit High-performance MCU
STM32F4 series, ARM Cortex-M4 core with hardware FPU & DSP instructions, optimized for real-time calculation, motor control and sensor fusion; industrial grade, non-automotive chip.
| Item | Parameter |
|---|---|
| Core | ARM Cortex‑M4 (with single-precision FPU, DSP instructions and MPU memory protection) |
| Max Operating Frequency | 168 MHz, performance: 210 DMIPS |
| Program Flash | 1 MB |
| SRAM | 192 KB + 4 KB backup SRAM |
| Package | LQFP‑64 (10×10 mm, SMD) |
| Available GPIO | Up to 51 channels |
| Supply Voltage | 1.8 V ~ 3.6 V (typical 3.3 V) |
| Operating Temperature | -40 ℃ ~ +85 ℃ (Industrial Grade) |
| Analog Peripherals | 3 × 12-bit ADC (2.4 MSPS); 2 × 12-bit DAC |
| Timers | Advanced & general-purpose timers, support multi-channel complementary PWM and quadrature encoder interface |
| Communication Interfaces | 2 × CAN2.0B, USB2.0 OTG HS/FS, SDIO, 3 × SPI, 2 × I²S, 3 × I²C, 6 × USART |
| Special Features | ART Flash accelerator (zero-wait-state Flash execution), hardware AES encryption, True Random Number Generator (RNG) |
| Compliance | RoHS Compliant |
