SM6T33CA | STMicroelectronics Bidirectional TVS Transient Voltage Suppressor Diode

2026-07-28 109

Item	Parameter
Device Type	Bidirectional Transient Voltage Suppressor (TVS) Diode
Reverse Stand-off Voltage (VRWM)	28.2 V (Maximum continuous operating voltage under normal condition)
Breakdown Voltage (VBR)	31.4 V (Min.) ~ 34.7 V (Max.)
Maximum Clamping Voltage (Vc) (10/1000μs surge)	59 V
Peak Pulse Power Dissipation	600 W (10/1000 μs waveform)
Maximum Reverse Leakage Current (IR)	0.2 μA @ 25℃

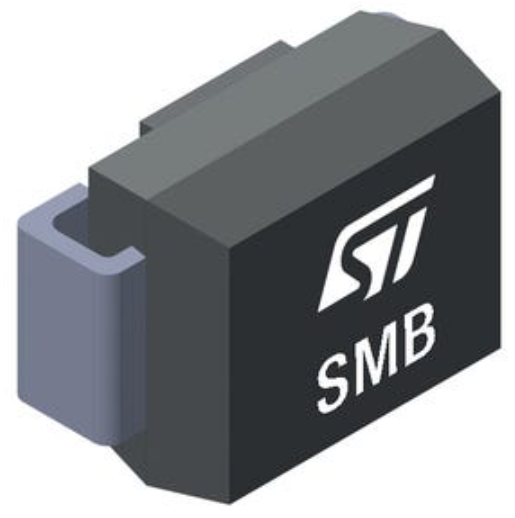

Package	SMB / DO-214AA SMD package
Mounting Type	Surface Mount Device (SMD)
Operating Junction Temperature Range	-55 ℃ ~ +150 ℃
Response Speed	Nanosecond level, fast suppression of transient high voltage
Compliance	RoHS Compliant; Non-automotive qualified

Industrial control equipment: Lightning and surge protection for 24V signal bus, RS485 and CAN bus
Power supply circuit protection for instruments, meters and sensor modules
DC power protection for security equipment, access control systems and IoT terminals
ESD protection for communication interfaces and serial signal lines
24V signal line protection inside UAVs and robots
