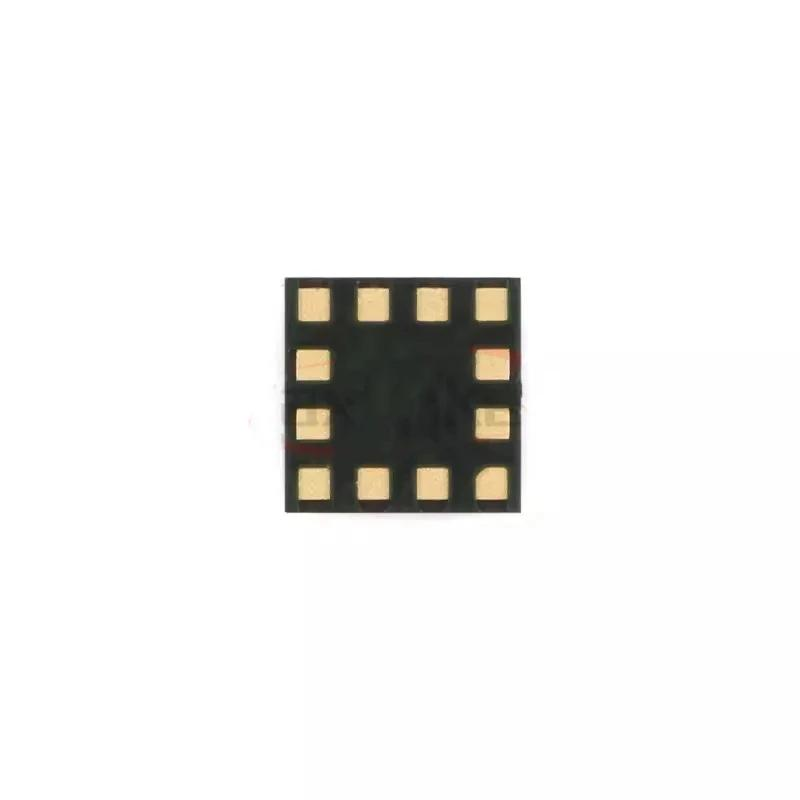

LIS2DWLTR – ST Femto Series Ultra-Low-Power 3-Axis Digital MEMS Accelerometer

. Measurement Performance

3-axis selectable full scales (programmable): ±2g / ±4g / ±8g / ±16gResolution: 16-bit high-precision ADCOutput Data Rate (ODR): Adjustable from 1.6Hz to 1600HzNoise performance: Noise down to 1.3mg RMS in low-power mode, offering high accuracy for tilt measurementShock resistance: Withstands instantaneous shock up to 10000g

2. Power Supply & Power Consumption (Core Advantages)

Analog supply VDD: 1.62V ~ 3.6VIndependent IO supply VDDIO, compatible with low-voltage MCUs

Ultra-low power modes:

• Deep sleep mode: only 50nA

• Always-on low-power detection mode: <1μA

• High-performance full sampling mode: typical 90μA

Supports ultra-long battery life, ideal for coin cell and disposable battery powered devices

ST意法半导体常用型号：

LIS2DWLTR

LSM6DSV16XTR

LSM6DSV32XTR

L9663-TR-1

L9369-TR

LSM6DSOETR3

LSM6DSK320XTR

ISM330DHCXTR
ASM330LHHTR
