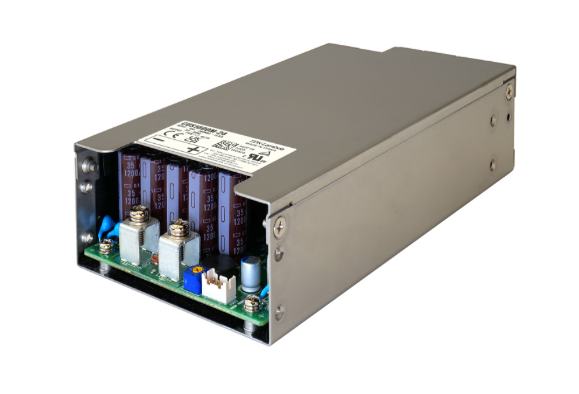

CUS800M-24, TDK-Lambda (Lambda brand under TDK Group, medical-grade switching power supply)

Brand: TDK-Lambda (Lambda, a subsidiary under TDK Group, medical-grade switching power supply)The CUS800M-24 is an 800W single-output enclosed AC-DC switching power supply for both medical and industrial applications. The CUS-M series features medical certifications, high efficiency and a compact metal chassis. Equipped with active PFC and temperature-controlled variable-speed fans, it complies with the 2×MOPP insulation safety standard for medical use, making it the mainstream power supply for medical equipment, test instruments and high-power industrial loads.

II. Complete Key Electrical Specifications

1. Input Specifications

Input Voltage: Full-range universal mains 85～265VACActive PFC, harmonics compliant with EN61000-3-2No minimum load requirement; no-load standby power consumption ＜0.6W

2. Output Specifications (CUS800M-24)

Rated Output: 24VDC / 800WRated Current: 33.33AOutput Adjustable Range: 21.6～26.4VOvercurrent Protection: ＞35.1A (automatic recovery short-circuit protection)Overvoltage Protection: 27.6～32.4VBuilt-in Auxiliary Standby Power: 5V/2A standby rail

IV. Application Scope

1. Medical Equipment (Core Application)

Ultrasound diagnostic devices, patient monitors, dental treatment equipment, rehabilitation physiotherapy instruments, blood analyzers, aesthetic medical devices, auxiliary power supply for operating rooms, main power supply for BF-type medical complete machines.

2. Industrial Automation & Test Measurement

Auxiliary power supply for high-power industrial servos, PLC control cabinets, precision testing instruments, laboratory test equipment, laser equipment, automated production line machinery.

3. Broadcast, Imaging & Audio-Visual Equipment

Professional cameras, studio imaging equipment, large gimbal motion systems, high-power power supply for premium action cameras (can work with LSM6DSK320XTR IMU sensors for complete machine power supply).

4. Charging Piles, Energy Storage & Smart Devices

Auxiliary power supply for small DC charging piles, high-power intelligent warehouse robots, Automated Guided Vehicles (AGVs), high-power industrial LED lighting drivers.

TDK电源  TDK-LAMBDA电源   医疗电源，医疗设备电源 常见型号
是CUS200M
 CUS600M
 CUS800M
 CUS1000M
  CUS1200M
CUS200M-12
CUS600M-12
  CUS800M -12
 CUS1000M-12
CUS1200M-12
CUS200M-24  CUS1000M-24    CUS1200M-24
CUS600M-24   CUS800M-24
