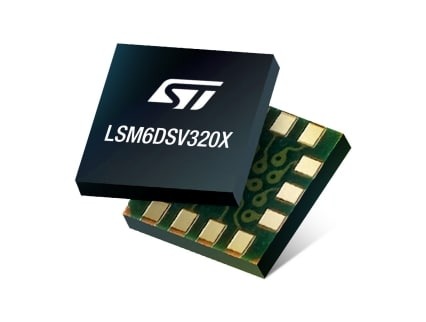

ST LSM6DSK320XTR 6-Axis Gyroscope IMU, an upgraded replacement for TDK ICM-42688-P
No direct hardware compatibility is available due to different manufacturers (ST vs TDK):
Register addresses, read/write logic and interrupt configurations are entirely incompatible.
Despite both adopting LGA14 packages, pin assignments for VDD, INT, SPI/I2C interfaces differ, making direct PCB mounting replacement impossible.
Device drivers are completely non-portable and require full rewriting and porting.
ST LSM6DSK320XTR outperforms TDK ICM-42688-P across all specifications
表格
| Comparison Item | ST LSM6DSK320XTR | TDK ICM-42688-P |
|---|---|---|
| Accelerometer | Dual-range design: ±16g normal mode + ±320g impact detection channel | Single range with max ±16g; no dedicated impact channel |
| Max Gyroscope Full Scale | ±4000 dps | ±2000 dps |
| Gyro Noise Floor | 0.4 m°/s/√Hz (lower noise, superior stability) | 2.8 m°/s/√Hz |
| Vibration Resistance | Differential gyro architecture with industrial-grade anti-vibration capability | Conventional single-ended structure, susceptible to vibration interference |
| On-chip Computing Engine | Embedded MLC machine learning core + FSM local AI processing | Basic motion detection engine only |
| Image Stabilization Hardware | Independent dedicated OIS/EIS hardware channels | Shared signal path prone to noise artifacts during stabilization |
| FIFO Buffer Size | 4.5 KB | 2 KB |
| 6-Axis Typical Current Consumption | 0.67 mA | 0.88 mA |
| Drop-in Replacement Feasibility | Similar package footprint, but incompatible pinout and registers; PCB redesign & driver modification mandatory | Standard factory stock part |
Functionally, LSM6DSK320XTR can fully replace ICM-42688 with upgraded performance for applications including flight controllers, gimbal stabilizers, equipment impact logging, industrial vibration monitoring and wearable motion tracking.Direct replacement is not feasible if the existing PCB is already mass-produced with no allowance for hardware or driver revisions.
The ST LSM6DSK320XTR is a high-end dual-accelerometer 6-axis IMU featuring 320g impact detection, robust anti-vibration performance and on-chip AI processing. It serves as a higher-performance alternative to the TDK ICM-42688, yet cannot be pin-to-pin compatible; both hardware PCB layout and firmware drivers must be adjusted for migration.
