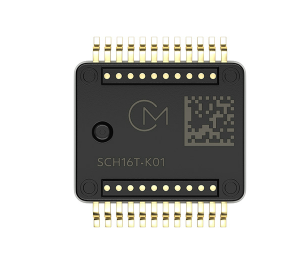

Murata SCH16T Series 6DoF Integrated Gyroscope & Accelerometer Sensor

The SCH16T series delivers industry-leading low gyro noise floor and flexible digital output options, ideal for demanding applications.

• Acceleration measurement range: ±16 g (SCH16T-K10) or ±8 g (SCH16T-K01 & SCH16T-K20)

• Auxiliary digital accelerometer channel with dynamic range up to ±26 g (SCH16T-K10 & SCH16T-K01 only)

• Gyro bias instability as low as 0.3 °/hr (SCH16T-K01 & SCH16T-K20) or 2 °/hr (SCH16T-K10)

• Gyro noise density as low as 0.4 m°/s/√Hz (SCH16T-K01 & SCH16T-K20) or 6 m°/s/√Hz (SCH16T-K10)

• Configurable output interpolation and decimation

• Data-ready output, timestamp indexing and SYNC input for clock domain synchronization

• Operating temperature range: −40 °C to 110 °C

• Supply voltage: 3.0 V to 3.6 V; I/O supply: 1.7 V to 3.6 V

• SafeSPI v2.0 interface

• Selectable 20-bit / 16-bit output data via SPI frames

• Advanced self-diagnostic system with over 200 internal monitoring signals, automatically reporting sensor status in every SPI frame

• 12 mm × 14 mm × 3 mm (L × W × H) inverted SOIC-24 package; PCB footprint < 170 mm²

• Qualified to AEC-Q100 standards

• Robust RoHS-compliant SOIC plastic package, compatible with lead-free soldering and SMD assembly processes

• Proven capacitive 3D-MEMS technology

Model Overview

• SCH16T-K01: Versatile high-performance general-purpose IMU

• SCH16T-K10: Extended gyro full-scale variant for high angular velocity measurement

• SCH16T-K20: New generation model with drastically improved gyro and accelerometer performance
