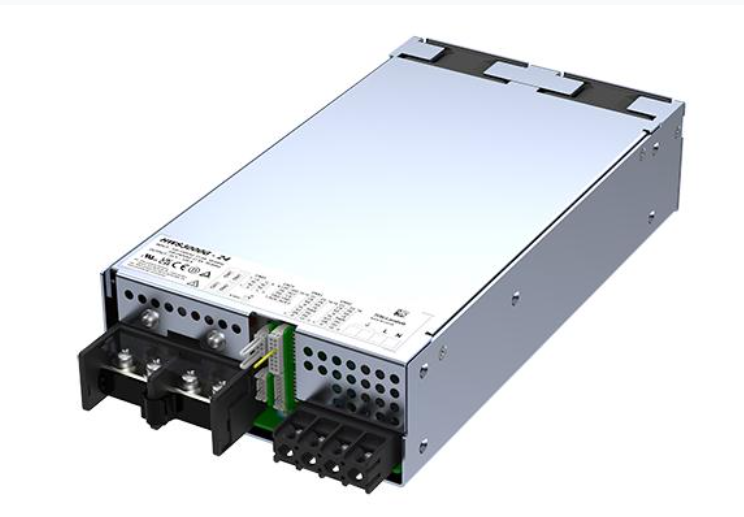

HWS3000G-130 | TDK-Lambda (a TDK Group Company) 3000W Single-Phase Programmable AC-DC Industrial Power Supply

TDK-Lambda (a TDK Group Company) 3000W Single-Phase Programmable AC-DC Industrial Power Supply (Dual CV / CC Mode). Part of the HWS3000G series with a nominal output of 130V. It is a high-power programmable power module, NOT a sensor.

 Key Specifications

- Input: Single-phase AC 85～265 Vac

- Nominal Output: 130 Vdc; adjustable output range **0～156 V**

- Max Output Current: 23.2 A

- Max Power: 1508 W at low AC range (85–132 Vac); 3016 W at high AC range (170–265 Vac)

- Efficiency: Up to 93%

- Dimensions: 270 × 150 × 61 mm

- Cooling: Forced air cooling

- Operating Temperature: -20 ℃ ~ +70 ℃

- Communication: RS485 Modbus-RTU; analog control also supported (1–5 V / 4–20 mA)

- Series / Parallel Operation: Up to 3 units in series, up to 10 units in parallel; N+1 redundancy supported

- Built-in: 5 V / 2 A standby supply, Remote On/Off, remote sense, power good signal, fan fault alarm

- Safety & EMC: UL/EN/IEC 62368-1; complies with SEMI F47 and EN55011 Class A (semiconductor fab standard)

- Warranty: 7 years

Purpose

It converts AC mains into stable, adjustable high-power DC power. It supports automatic CV/CC crossover and provides controllable, regulated DC power for downstream equipment. Voltage and current can be programmed via host controller, ideal for industrial equipment requiring adjustable high-power DC supply.

 Built-in Features

1. Automatic CV/CC crossover (programmable)

2. Dual control: RS485 Modbus digital programming + analog control

3. Remote voltage sensing (Remote Sense) to compensate voltage drop on long cables

4. Programmable output slew rate, operating hour logging, fault log storage

5. Protection: overvoltage, overcurrent, overtemperature, fan fault

6. Multi-unit parallel redundancy and series connection for higher power / higher voltage

7. Isolated 5 V standby output for standby control of the whole unit

Applications

- Semiconductor equipment, wafer fabrication equipment (SEMI F47 compliant)

- Laser processing, laser power supplies

- Power supply for RF power amplifiers

- New energy testing, battery charge & discharge testing

- Automation equipment, industrial tooling

- High-power laboratory test & measurement instruments
- Printing machinery, large industrial drives
