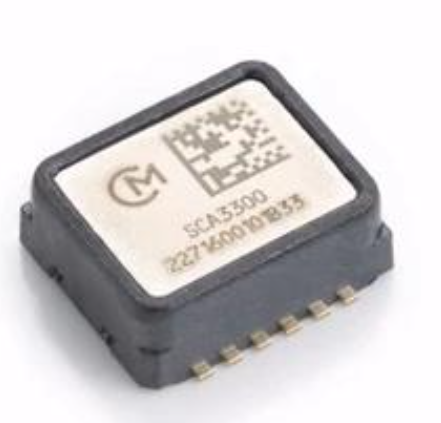

Murata 3-axis industrial high-precision MEMS accelerometer (for tilt measurement)

Capacitive 3D-MEMS, featuring high stability, vibration resistance and low temperature drift. ⚠️ It is an accelerometer only, without gyroscope (fundamentally different from the 6-axis IMU BMI270).

 Key Specifications

- Package: DFL 12-pin, dimension 7.6 × 8.6 × 3.3 mm

- Axes: X/Y/Z 3-axis acceleration

- Selectable full-scale range: ±1.5g / ±3g / ±6g

- Filter bandwidth: 10 Hz / 70 Hz (configurable via software)

- Noise density: Typ. 37 μg/√Hz, low noise

- Interface: 4-wire SPI (SPI-only, no I2C)

- Supply voltage: 3.0 ~ 3.6 V (typ. 3.3 V)

- Power consumption: Approx. 1 mA typical

- Offset temperature drift: X/Y ±10 mg, Z ±15 mg

- Operating temperature: -40 ℃ ~ +125 ℃

- On-chip features: Comprehensive self-diagnosis functions, mechanical damping structure (anti-vibration)

- Mounting: SMD, RoHS compliant

 Functions

1. Measures static gravitational acceleration on XYZ axes to calculate tilt angles (for static leveling)

2. Detects low-frequency vibration, static attitude and slow tilt variation

3. Outputs stable acceleration data for MCU to perform tilt compensation and attitude calculation

>

> Key note: Suitable for static / quasi-static tilt measurement. Not for high-speed dynamic attitude or fast rotation (no gyroscope). Built-in damping prevents tilt readings from jumping under heavy vibration, which is its biggest advantage.

Built-in Features

1. Configurable multiple measurement ranges and bandwidth

2. On-chip self-diagnosis (fault detection)

3. Vibration-resistant mechanical damping design

4. Raw acceleration data output directly via digital SPI

Application Scope

- Construction machinery: tilt monitoring and leveling for cranes, excavators

- Surveying instruments: laser levels, total stations

- AGVs, tilt compensation for industrial platforms

- Structural Health Monitoring (SHM): deformation and vibration monitoring of bridges and equipment

- Agricultural machinery, angle detection for solar tracking brackets

- Industrial high-precision inclinometers, industrial IMU integrated units

- Vehicle attitude monitoring (static tilt)

❌ Not suitable for: TWS earbuds, smartwatches, FPV drones, applications requiring angular velocity or fast motion tracking (no gyroscope)

> Elevator pitch: The SCA3300-D01 is Murata’s industrial 3-axis high-precision accelerometer with vibration resistance and low temperature drift. It adopts SPI interface and is dedicated to static tilt and leveling measurement, widely used in construction machinery, surveying instruments and solar tracking brackets.
