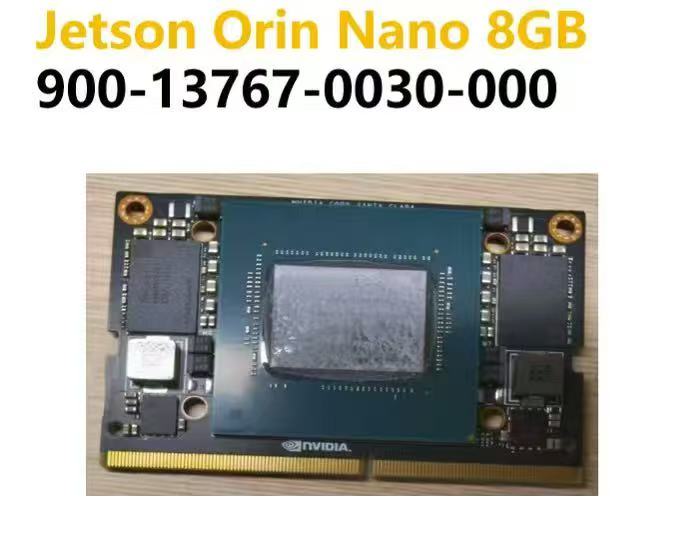

NVIDIA 900-13767-0030-000 Jetson Orin Nano 8GB System-on-Module (SOM)

 Brand: NVIDIA

Full Model Name: Jetson Orin Nano 8GB System-on-Module (SOM)

Key Specifications

1. GPU: Ampere architecture, 1024 CUDA cores + 32 Tensor cores

2. CPU: 6-core ARM Cortex-A78AE v8.2 64-bit processor

3. Memory: 8GB LPDDR5, 128-bit bus width, 68GB/s bandwidth

4. AI Performance: Up to 40 TOPS (INT8 inference)

5. Power Consumption: Adjustable from 7W to 15W

6. Dimension: 69.6mm × 45mm, SO-DIMM edge finger package

7. Interfaces: PCIe Gen3, Gigabit Ethernet, up to 4-channel camera input, DP/eDP/HDMI display output

8. OS: Ubuntu supported, compatible with NVIDIA Jetpack SDK development kit

 Functions

Edge AI inference computation, supporting image recognition, object detection and semantic segmentation.

Parallel processing of multi-camera video streams.

Supports deployment of deep learning models, capable of running AI algorithms such as YOLO and CNN.

High-speed peripheral expansion for connecting cameras, radars and sensors to implement embedded intelligent computing.

Local AI computing available without reliance on cloud servers.

Application Scope

Robotics: Vision main controller for AGVs, inspection robots and service robots.

Machine Vision: Industrial defect inspection and visual recognition.

Smart Security: Edge camera AI analysis.

Drones: Lightweight on-board visual recognition.
> Note: The SOM cannot power up and work standalone; it must be used with a carrier board.
