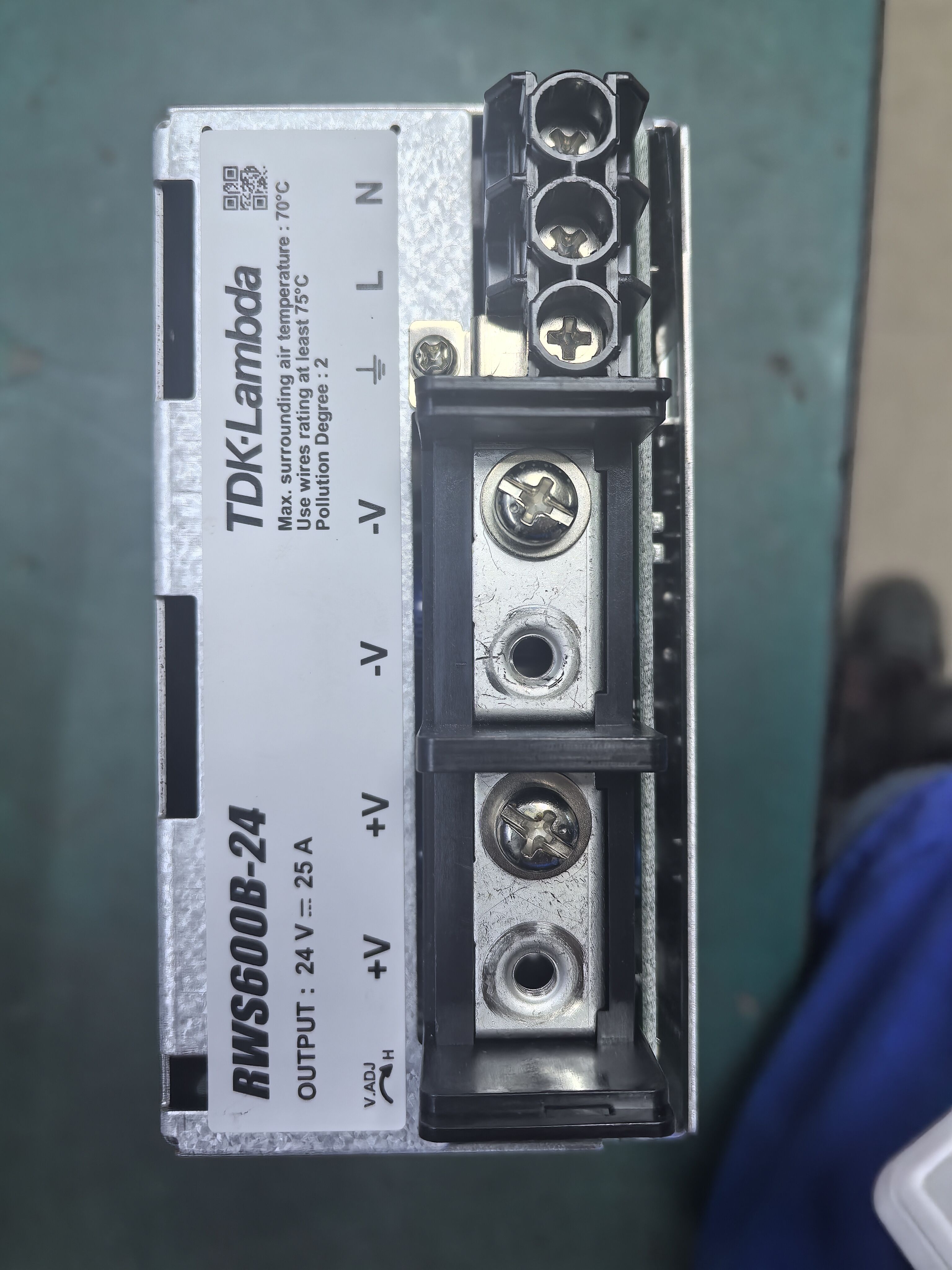

RWS600B-24 (TDK-Lambda AC-DC switching power supply)

RWS600B-24 is an enclosed single-output AC-DC switching power supply of TDK-Lambda RWS-B series, rated at 600W with 24V DC output. Built-in power factor correction, this standard industrial chassis power supply features high reliability and supports universal global AC input.

## Key Parameters

- Input voltage: 85～265VAC (single phase), 120～330VDC

- Rated output: 24V DC / 25A, max power 600W; output adjustable range: 21.6V～27.6V

- Typical efficiency: 88.5%

- Power factor: up to 0.99

- Operating temperature: -20℃ ~ +70℃; power derating to 50% at 70℃

- Ripple & noise: maximum 150/180mV

- Protections: over-current, over-voltage, over-temperature and short-circuit protection

- Isolation voltage: Input to FG 2kVAC, Input to Output 3kVAC

- Dimension: 61 × 120 × 190 mm; weight approx. 1600g

- Certifications: IEC/EN/UL 62368-1, compliant with SEMI F47; EMC meets EN55032-B and FCC-B

- Optional functions: Remote on/off, remote sense, parallel current sharing, DC Good signal

## Functions

1. Converts universal AC power to stable 24V DC to supply power for complete equipment.

2. Integrated PFC (Power Factor Correction) to reduce grid harmonic interference.

3. Supports parallel connection of multiple power supplies for capacity expansion to meet higher power requirements.

4. Comprehensive protection circuits automatically protect the power supply and rear-end loads under abnormal load conditions.

5. DC Good signal feeds back the normal status of power supply, facilitating system power-up sequence control.

## Application Scope

- Industrial automation equipment, industrial control cabinets, servo systems

- Test & measurement instruments, ATE test platforms

- Communication equipment, broadcasting equipment

- Large LED lighting, power supply for outdoor signage

- Semiconductor equipment, factory automation

>

> Not suitable for extreme environments such as high pressure, underwater or heavy corrosive conditions.
