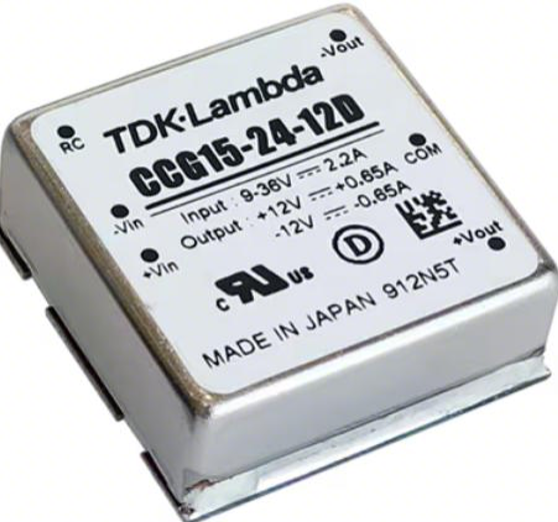

CCG15-24-12D | TDK-Lambda (Dongdianhua Landa) | Isolated DC-DC Power Module, CCG15S Series, Single-Channel Output Through-Hole Plug-in Module

Parameter Item | Specification

Input voltage range: 9 ~ 36 VDC (nominal 24V)

Input Current (Typ, Full Load) 0.73 A

Output Configuration: Dual-channel symmetric: +12V/-12V

Maximum output current per channel: 0.65 A

Total rated power 15.6 W

Efficiency (Typ): 89%

Output voltage accuracy ± 5%

Adjustable voltage range: Fixed output (not trimmable for voltage adjustment)

Maximum input variation (Line Reg): 75 mV

Maximum Load Variation (Load Reg) 120 mV

Cross-load variation: 480 mV

Maximum temperature variation 60 mV (0.02%/ °C)

Maximum ripple noise: 95 mVp-p

Switching frequency: Approximately 430 kHz (common for CCG series)

Key Points of Typical Application Circuits

According to the official basic connection diagram:

Input side: Each module requires a 6.3A DC fuse (fast-blow or general fuse type) in series.

Input capacitor C1: electrolytic capacitor ≥50V/120μF, it is recommended to choose a model with low ESR and excellent temperature characteristics;When the input line impedance is high, the capacity needs to be increased.

Output side: +Vout and COM indirect positive load, -Vout and COM indirect load, COM is two-way common ground.

Ripple noise: In actual use, an external output capacitor is required to achieve the 95mVpp indicator, refer to the user manual for specific details.

VII. Product Advantages

±12V symmetrical dual-channel output: A single module can power circuits requiring positive and negative power supplies, such as operational amplifiers, analog front ends, and RS-232 interfaces, eliminating the need to combine two single-channel modules.

Fully metal-shielded on all six sides: low electromagnetic radiation, strong anti-interference capability, suitable for industrial noise environments.

9~36V ultra-wide input: compatible with 12V/ 24V industrial control bus and battery power supply system, simplified selection

-40°C low-temperature startup: Wide operating temperature range design, suitable for harsh environments such as outdoor, automotive, and industrial control applications.

1500VDC Isolation: Complete isolation between input and output, enabling safe separation of high-voltage and low-voltage sides.

1×1 inch standard package: Pin-compatible with other models in the same series, PCB layout can be reused, and the PCB layout can be replicated.

VIII. Typical Application Scenarios

Industrial control panel, PLC analog module

Operational amplifiers, ADC/DAC analog front-end power supply (requires ± power supply)

Communication equipment and power supply for remote sensors.

Testing and measuring instruments

24V battery-powered equipment

RS-232 / RS-485 interface isolated power supply

ITE Information and Electronic Equipment
