CUS1000M-24 | TDK-Lambda 1000W Medical / Industrial AC-DC Switching Power Supply
 Product Definition

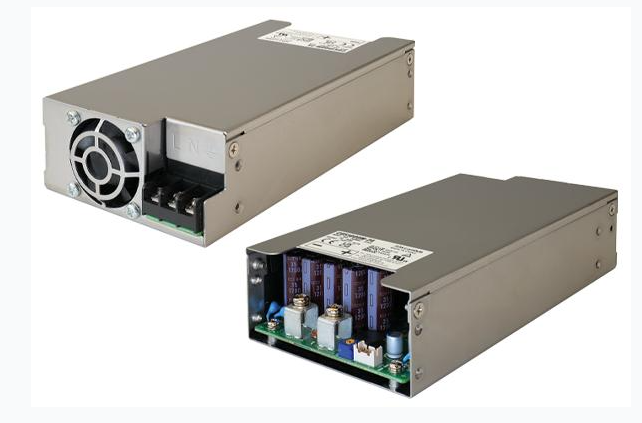

TDK-Lambda CUS1000M-24 is a 1000W enclosed AC-DC power supply from the CUS-M series. It features medical safety certifications and high power density. It provides fixed 24V output and is not a programmable power supply, designed for DC power supply in medical equipment and precision industrial instruments.

## Core Functions

1. AC-DC Conversion: Converts single-phase AC mains to stable 24V DC output. The output voltage can be fine-adjusted within a narrow range via potentiometer (23.4~25.9V). It is not full-range programmable with 0V starting adjustment.

2. Built-in 5V/2A standby auxiliary power supply for powering mainboard control circuits.

3. Remote On/Off function to enable system-level start and stop control.

4. Comprehensive protections: OVP over-voltage, OCP over-current, OTP over-temperature and short-circuit protection.

5. Variable-speed thermally controlled fan: Low noise at 30~42dBA; low fan speed under light load for noise reduction.

6. Medical-grade isolation with **2×MOPP**. Earth leakage current <250μA, complying with safety requirements for medical devices.

7. Multiple units can be paralleled for higher output current (current sharing supported). Series operation for voltage boosting is not available.

8. High-altitude suitability: Normal operation up to 5000m altitude.

## Key Specifications

Input: 85～265VAC, 47~63Hz. **Full power output available above 90VAC**

Output: Nominal 24Vdc; adjustable range 23.4~25.9V, max current 41.7A, rated power 1000.8W

Efficiency: Typical 95% at 230VAC input

Power Factor: 0.95

Dimensions: 171 × 85 × 42.5 mm

Weight: Approx. 850g

Operating Temperature: -20℃ ~ +70℃ (derating required at high temperatures)

Cooling: Built-in variable-speed forced air cooling

Safety Certifications: IEC/EN/UL 60601-1 (Medical), IEC/EN/UL62368-1; EMI meets EN55011-B, FCC Class B

Warranty: 7-year original manufacturer warranty

Applications

1. Medical Equipment (Core Market)

CT, X-ray and ultrasound imaging equipment; PCR, biochemistry IVD instruments; dialysis machines, endoscopes, medical surgical robots, dental equipment, medical aesthetic ablation devices; medical beds

2. Industrial Intelligent Manufacturing

Industrial robots, small laser equipment, automated production lines

3. Semiconductor Equipment

Semiconductor inspection, small process auxiliary equipment

4. Test & Measurement Instruments

Laboratory test jigs, precision measuring equipment

5. Others

Professional broadcast audio equipment, new energy test jigs

 Key Differences (vs HWS3000G-48)

CUS1000M-24: Medical safety approvals, fixed 24V with narrow range fine adjustment, compact size, 1kW, no full-range CVCC programming.

HWS3000G-48: Industrial programmable power supply, full-range adjustable CVCC from 0~52.8V, 3kW, with Modbus communication and SEMI F47 compliance.
