TDK General‑Purpose C‑Series MLCC,
 X5R Class‑II dielectric multilayer ceramic chip capacitor. 1206 chip size, capacitance 22 μF, rated voltage 35 V DC. Featuring X5R temperature characteristic with minor capacitance variation over temperature range. Supplied in tape‑and‑reel for SMT mounting, RoHS compliant.

 Key Specifications

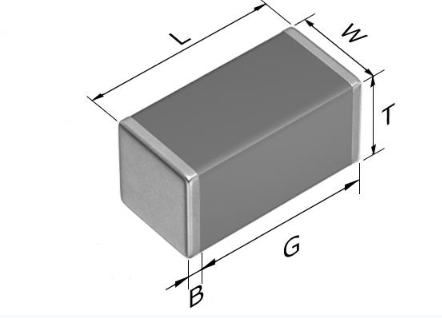

Package size: 1206 (metric 3216), 3.2 × 1.6 mm, thickness 1.6 mm

Capacitance: 22 μF

Tolerance: ±20% (Grade M)

Rated voltage: 35 V DC

 Dielectric: X5R; capacitance change within ±15% from −55 ℃ to +85 ℃

Packaging: Tape & Reel, minimum packing quantity: 2000 pcs

Operating temperature: −55 ℃ ~ +85 ℃

Dissipation Factor (DF): max. 10%

 Main Functions

1. Power‑supply filtering: Filter at power input and output to suppress voltage ripple and smooth power supply.

2. Energy storage & decoupling: Local decoupling for ICs to supply instantaneous high‑current and reduce power‑supply noise.

3. Bypass and voltage stabilization: Absorb circuit spike disturbances and improve power‑system stability.

4. Excellent temperature stability of X5R dielectric. Compared with Y5R dielectric, no sharp capacitance drop under high‑ or low‑temperature conditions.

5. Partial replacement for electrolytic capacitors; benefits include compact size, non‑polarity, low ESR and fast response.

## Application Scope

1. Industrial equipment: industrial control boards, sensor modules, industrial power supplies, servo control boards, power circuits for instrumentation.

2. Consumer electronics: power‑supply filtering for routers, adapters, set‑top boxes and smart‑hardware mainboards.

3. IoT devices, security equipment, access‑control units and PLC control boards.

4. Non‑safety automotive circuits (non‑automotive‑qualified; not for AEC‑Q100 safety‑related circuits).

5. Decoupling and filtering for general‑purpose circuit boards in communication and medical devices.

### Model Note

For C3216X5R1V226MTJ00E, suffix TJ00E denotes packaging / revision code. It is electrically equivalent to C3216X5R1V226M160AC, and the two parts can be interchangeable.
