SCH16T-K10 | Murata (Murata) | 6-DOF six-axis MEMS IMU (three-axis gyroscope + three-axis accelerometer) | Series: SCH16T, high dynamic range version

SCH16T-K10

Model interpretation

SCH16T: Product series, 6-axis inertial measurement unit

K10: Version code, ultra-high range version, gyroscope ±200°/s, acceleration ±16g Murata Man...

Core electrical parameters

form

project

parameter

Measurement axis

3-axis gyroscope + 3-axis accelerometer (6DoF)

Gyroscope range

± 2000°/ s (software can be reduced to ± 1000° / s), dynamic upper limit can reach ± 2600° / s

Acceleration measurement range

±16g, auxiliary channel maximum ±26g Murata Man...

Gyroscope bias instability

2 °/hMurata Man...

Gyroscope noise density

6 m°/s/√HzMurata Man...

Power supply voltage

3.0‑3.6V；IO voltage 1.7−3.6V, typical 3.3V main control adapter Mouser Ele...

Communication interface

Safe-SPI2.0, supports 16bit/20bit output, with timestamp, SYNC synchronization signal Mouser Ele...

Filtering bandwidth

13Hz ~ 370Hz Registers optional low-pass filter Murata Man...

Operating temperature

-40℃ ~ + 110 ℃, AEC-Q100 Grade 1 Verification Conditions -40 ~ + 125 ℃ Murata Man...

to encapsulate

SOIC-24 SMD surface mount package

Body size

11.8 ×13.4 ×2.9 mm

MPQ

1000 pcs / roll (SCH16T-K10-10); 100pcs/roll (SCH16T-K10-1)

Self-diagnosis

200+ internal state self-checks, strong fault detection ability

Appearance form

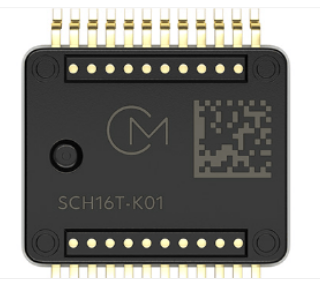

Black plastic SOIC-24 surface mount module with double row gold-plated pins on all four sides; The shell is printed with the CM logo of Murata, silk-screened model number and QR code; Flip-chip packaging, metal MEMS cavity inside; SMT reflow soldering, sensitive to mechanical shock, avoid strong squeezing.

Typical applications

High-speed rotating drones, high-speed robots, motion platform IMU navigation

Stance measurement of construction machinery and high-speed motion equipment

A very large angular velocity range is required, and the gyroscope should not be saturated.

Industrial inertial measurement unit, attitude and heading reference system AHRS
