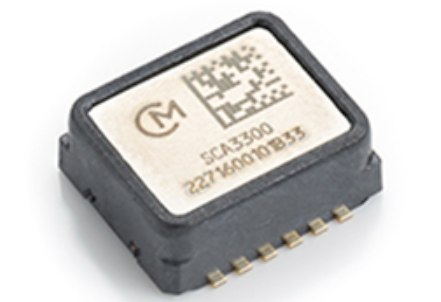

SCA3300‑D01 (Murata) Industrial / Quasi‑Automotive‑Grade 3‑Axis Digital MEMS Accelerometer

Device Type: Industrial / Quasi‑Automotive‑Grade 3‑Axis Digital MEMS Accelerometer. Accelerometer‑only, no gyroscope. Adopting Murata 3D‑MEMS capacitive sensing with built‑in mechanical damping structure for high vibration resistance. Multi‑selectable measurement ranges, suitable for harsh industrial environments with severe vibration.

SCA3300‑D01 Package Drawing

Key Specifications

Measurement Ranges (Software‑configurable)

‑ Three optional ranges: ±1.5 g / ±3 g / ±6 g‑ Filter: 10 Hz low‑pass filter available for ±1.5 g; 70 Hz low‑pass filter supported for all ranges‑ Noise Density: 37 µg/√Hz‑ Temperature Zero‑point Drift: X/Y ±10 mg, Z‑axis ±15 mg‑ Built‑in mechanical damping suppresses external vibration interference and ensures stable output under heavy‑vibration conditions.

Core Functions

‑ Output raw X/Y/Z three‑axis digital acceleration data for MCU to calculate tilt and inclination angles.‑ Three‑range switching: small ±1.5 g range for tilt measurement; ±3 g / ±6 g for shock and vibration detection.‑ Unique mechanical‑damping structure maintains stable output under strong‑vibration working conditions and provides high immunity to vibration disturbance.‑ Hardware self‑diagnosis reports sensor faults in real time to improve overall system reliability.‑ SPI digital output, no external ADC required. Can be paired with external gyroscopes to construct IMU inertial measurement units.

Application Scope

Construction Machinery & Leveling Systems

Tilt monitoring for aerial work platforms, cranes and construction machinery; professional spirit levels and automatic platform‑leveling systems.

IMU Inertial‑Measurement Support

Combines with external gyroscopes to form inertial measurement units; navigation and attitude modules; attitude sensing for heavy‑duty equipment.

Industrial Equipment Vibration Monitoring

Vibration‑status acquisition for industrial equipment; equipment motion analysis and motion control.

Structural Health Monitoring (SHM)

Monitoring for steel towers, wind‑power facilities and foundation pits; deformation monitoring of buildings under severe‑vibration environments.

Non‑Safety‑Related On‑board Applications

Vehicle‑mounted tilt and attitude detection (non‑functional‑safety automotive components); attitude monitoring for special‑purpose vehicles.

Other Scenarios

Surveying‑mapping instruments; heavy‑duty mobile equipment; industrial measuring devices requiring vibration resistance and wide‑temperature performance.

Comparison (SCA3300‑D01 VS SCA3400‑D01)

‑ SCA3300‑D01: Maximum range ±6 g, operating temperature ‑40℃ ~ +125℃, equipped with mechanical damping for strong vibration resistance; moderate drift performance, suited for heavily vibrated equipment.‑ SCA3400‑D01: Maximum range ±2.4 g, operating temperature ‑40℃ ~ +85℃; superior zero‑point drift and noise performance, ideal for SHM structural‑health monitoring with low‑vibration environment and demand for ultra‑low long‑term drift.
