APSG160 ETD272M J20S | Nippon Chemi-Con (Gumi / Black King) | Wire radial conductive polymer solid aluminum electrolytic capacitor, non-AEC-Q200 automotive grade, polar through-hole plug-in

Model segmented disassembly

APSG 160 ETD 272 M J20 S

APSG: Series code PSG, lead-type polymer solid aluminum electrolyte, 105 ℃ electronic engineering world...

160: Rated voltage 16V DC

ETD: Pin forming code (short pin forming, ELL is the standard long pin) 1688 Ah...

272: Capacitance 27 × 10² = ** 2700μf**

M: Tolerance ± 20% (-20% ~ +20%)

J20: Size code: Φ10mm x height 20mm, pin spacing 5mm

S: Standard tubing version

Key electrical parameters

form

project

parameter

Rated voltage

16V DC

Capacity

2700μf ±20%

Operating temperature

‑55°C ~ +105°C Japanese Chemico...

Maximum ESR

8mΩ (20°C, 100kHz-300kHz)

Ripple current

8100 mA rms (105°C, 100 kHz) Japanese Chemico...

Leakage current Max

4320μ A (after 2 minutes)

Tanδ loss angle

0.12 Max at 120Hz Japanese Chemico...

Durability

105°C, 20,000 hours DC load (solid state long life)

Terminal plating

Sn plating

weight

4.0g

Minimum packaging MPQ

1000pairs / box Japanese KEMICO...

Appearance form

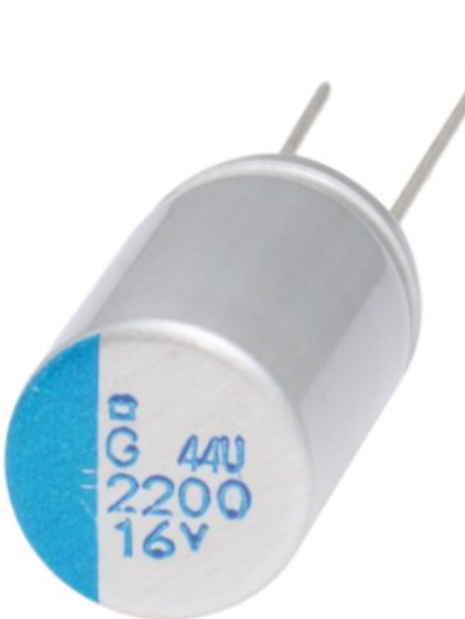

Radial through-hole cylindrical polymer solid capacitor, silver gray aluminum shell, blue polarity marking strip at the bottom, negative electrode marked;Body Φ10 mm, height 20 mm, pin spacing 5 mm, short leg formed (ETD), through-hole plug welding; No electrolyte, won't leak or bulge, has polarity, strictly prohibit reverse connection 1688 ah...。

Typical applications

‑ High current DC‑DC output filtering, server, industrial control power supply ‑ USB-PD high power supply, multi-phase power output terminal ‑ Requires ultra-low ESR, ultra-large ripple tolerance, long life scenario ‑ Replaces the same specification of liquid aluminum electrolysis, significantly reduces temperature rise, improves life
