APXG16-0ARA680-MF46G | Nippon Chemi-Con (Nippon Chemi-Con, Black King) | Series: PXG (NPCAP)™ ) Conductive polymer solid-state aluminum electrolytic capacitor

Model segmented disassembly

APXG 160 ARA 680 M F46 G

APXG: Series code PXG, high-polymer solid aluminum electrolyte, surface mount vertical, 105 ℃ series

160: Rated voltage 16V DC (160 = 16 × 10⁰)

ARA: internal structure / terminal specification code

680: Capacitance 68 × 10⁰= 68μF

M: Tolerance ± 20% (-20% ~ +20%)

F46: Size code: Φ6.3 mm × height 4.5 mm

G: Wrapped packaging version (J is another packaging version) Japanese Kemic...

Key electrical parameters Japanese KEMICO...

form

project

parameter

Rated voltage

16V DC

Capacity

68μF 20%

Operating temperature

‑55℃ ~ +105℃

Maximum ESR

20mΩ (20°C, 100kHz-300kHz)

Ripple current

3200mA rms（105℃，100kHz）

Leakage current Max

544μA (after 2 minutes)

Tanδ loss angle

0.12 Max @120Hz

Durability

105°C, 3000 hours DC load

Terminal plating

Sn-Bi tin-bismuth plating

weight

0.27g

Minimum packaging MPQ

1000 pcs / plate

Appearance form

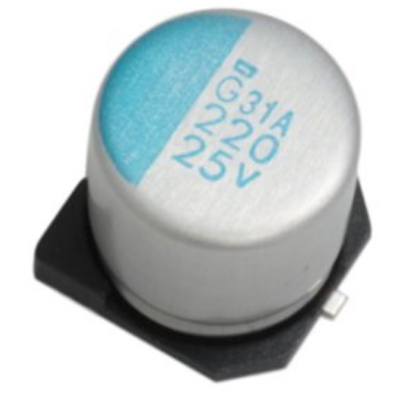

Vertical SMD cylindrical aluminum shell, black SMD base, metal silver gray shell, top blue polarity mark, has polarity, must pay attention to positive and negative welding.

Typical applications

USB-PD power supply, DC-DC input and output filtering

Motherboard, industrial control board, server power supply, large ripple, low ESR demand scenarios

Switching power supply output filtering, replacing ordinary liquid aluminum electrolysis, longer life, lower impedance Japan Kemic...
