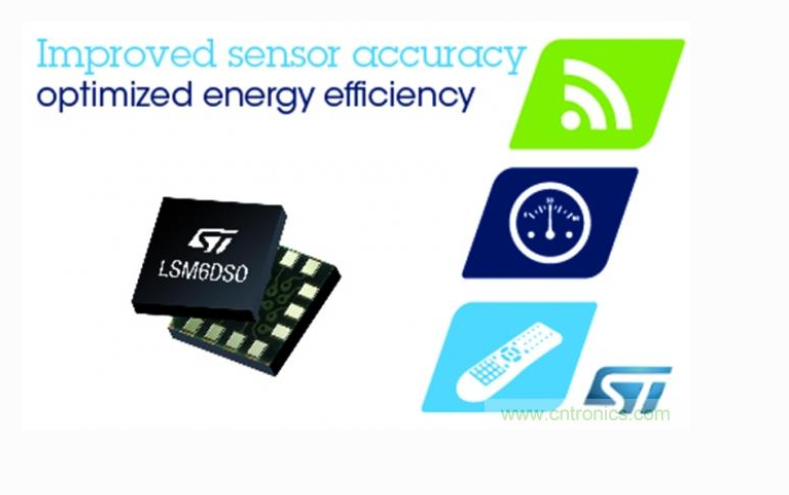

LSM6DSOETR3 is a 6-axis MEMS Inertial Measurement Unit (IMU) in the ST iNEMO series by STMicroelectronics.

 II. Full Core Parameters

 1. Basic Physical and Electrical Parameters

- Package: LGA-14L, dimensions 2.5mm × 3.0mm × 0.83mm

- Supply Voltage: Analog main supply 1.71V ~ 3.6V; independent I/O supply 1.62V

- Operating Temperature: -40℃ ~ +85℃ (commercial-grade with general industrial temperature range)

- Communication Buses: I2C, SPI, high-speed MIPI I3C 1.1 interface; dedicated auxiliary SPI for OIS stabilization data output

- FIFO Buffer: Large 9KB buffer, greatly reducing MCU sampling load

- Power Consumption (Core Selling Point): Typical current of only 0.55mA when accelerometer and gyroscope operate synchronously in high-performance mode; supports Always-On low-power continuous detection

- Output Resolution: 16-bit ADC digital output for all channels

### 2. Sensing Full Scale and Accuracy

#### 3-Axis Accelerometer

- Software-selectable full scales: ±2g / ±4g / ±8g / ±16g

- Integrated hardware interrupt detection for step counting, free fall, tilt, single-tap and double-tap events

#### 3-Axis Gyroscope

- Selectable angular rate full scales: ±125 / 250 / 500 / 1000 / 2000 dps

- Maximum Output Data Rate (ODR): 6.66kHz

- Excellent mechanical shock resistance and outstanding attitude stability under vibrating conditions

### 3. Exclusive Features (Key Sales Highlights)

1. Embedded MLC Machine Learning Core + FSM Finite State Machine

Performs on-chip motion recognition, vibration judgment and attitude trigger events directly on the sensor, without consuming computing resources of the main STM32 MCU, simplifying flight control program development.

2. Independent Auxiliary SPI Channel for OIS

Gyroscope data is output via a separate SPI bus, directly interfacing with camera optical image stabilization modules, perfectly compatible with EIS/OIS for smartphones and aerial gimbals.

3. Abundant Hardware Interrupts

Supports free fall detection, 6D orientation detection, wake-up/sleep control, tap detection, activity and inactivity monitoring.

4. Sensor Hub Expansion Interface

External magnetometers and barometers can be connected to construct a complete 9-axis or 10-axis navigation system.

5. Compliance

RoHS compliant, ECOPACK eco-friendly package.

--- III. Application Scope

1. Drones, Gimbals and Aerial Photography Equipment (Core Promotion Scenario)

1. Attitude calculation, self-stabilized hovering and vibration reduction for flight controllers of consumer-grade aerial drones

2. EIS electronic image stabilization for handheld camera gimbals and action cameras; auxiliary SPI direct connection to OIS stabilization modules

3. Attitude data acquisition for small plant protection drones and entry-level FPV racing drones (the 2000 dps full scale covers conventional rolling and flipping movements)

4. Closed-loop attitude control for RC aircraft, boats and cars

2. Consumer Electronics

1. Smartphones: Auto screen rotation, video EIS electronic stabilization, motion-sensing gesture control

2. Smart watches & fitness bands: Raise-to-wake, step & sleep monitoring, fall alert, sports posture analysis

 3. Industrial Automation & IoT

1. Tilt calibration and closed-loop attitude control for AGV/RGV automated guided vehicles and collaborative robotic arms

2. Cabinet tilt anti-theft alarm, online vibration monitoring and fault diagnosis for equipment motors

3. Angle detection for automatic solar panel sun-tracking systems, attitude collection for portable handheld measuring instruments

. Other Applications

Attitude control for self-balancing scooters and electric skateboards, portable navigation terminals, gesture-sensing switches for smart home systems.
