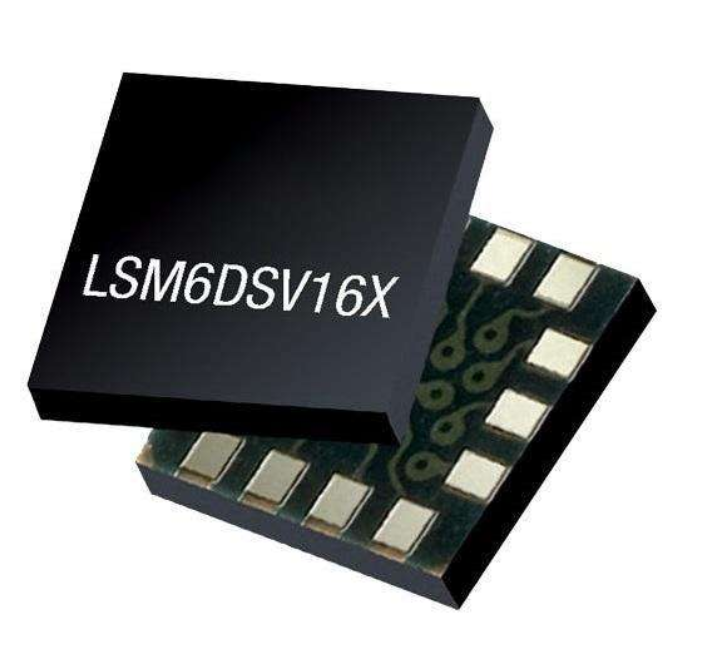

LSM6DSV16XTR is a 6-axis Inertial Measurement Unit (IMU) manufactured by STMicroelectronics (ST).

# Key Core Parameters

## 1. Basic Physical & Electrical Parameters

- Package: LGA-14L, dimensions 2.5mm × 3.0mm × 0.86mm, ultra-small SMD package

- Supply Voltage: Analog main supply 1.71~3.6V; independent I/O supply 1.08~3.6V

- Operating Temperature: -40℃ ~ +85℃ (commercial grade with general industrial temperature range)

- Communication Interfaces: I2C, SPI, high-speed I3C 1.1 interface (standard configuration for high-end devices)

- FIFO Buffer: 4.5KB data buffer to reduce MCU resource consumption

## 2. Sensing Full Scale & Accuracy

### 3-axis Accelerometer

- Selectable full scales: ±2g / ±4g / ±8g / ±16g

- Noise: 60 µg/√Hz (ultra-low noise for more stable attitude measurement)

### 3-axis Gyroscope

- Selectable full scales: ±125/250/500/1000/2000/±4000 dps (ultra-wide angular velocity range)

- Noise: 2.8 mdps/√Hz, zero-rate bias stability: 3 dph

- Maximum Output Data Rate (ODR): 6.66kHz (top-tier refresh rate in the industry)

## 3. Exclusive Core Features (Key Selling Points for Sales)

1. Triple-Core Independent Architecture (UI + OIS + EIS)

Three independent computing cores separately handle device UI attitude, camera Optical Image Stabilization (OIS) and Electronic Image Stabilization (EIS) without mutual interference. It is the core solution specially designed for main camera stabilization in smartphones.

2. On-board AI Computing Power

- MLC 2.0 Machine Learning Core: Enables on-device motion recognition and attitude judgment without heavy computation load on the main controller MCU

- 8-channel FSM (Finite State Machine): Customizable interrupt triggers for motion events (free fall, shake, tilt, step counting, etc.)

3. Qvar Charge Sensing Technology

External electrodes support touch interactions including single tap, double tap, swipe and long press. Widely applied in TWS earbud tap control, wearable device gesture recognition, eliminating the need for a separate dedicated touch IC.

4. Power Consumption

Typical current: 0.65mA under synchronous high-performance operation. Supports always-on low-power detection to extend the battery life of lithium-powered devices.

---

# III. Application Scope

## 1. Consumer Electronics (Largest Consumption Market)

1. Smartphones & Tablets: Main camera OIS optical stabilization, video EIS electronic stabilization, automatic screen rotation, portrait/landscape switching, motion-sensing game control

2. TWS Bluetooth Earbuds: Tap to switch songs / voice assistant wake-up (Qvar function), in-ear detection, free-fall protection

3. Smart Wearables: Raise-to-wake for smart watches, fall alert, step counting & sleep monitoring, sports posture analysis for fitness bands, head tracking for VR/AR headsets

## 2. Drones, RC Models and Gimbals

- Attitude calculation and self-balancing for flight control mainboards of aerial photography drones, gimbal stabilization and vibration reduction

- EIS electronic image stabilization for handheld gimbals and action cameras, replacing part of dedicated stabilization sensors

- High-speed angular velocity attitude acquisition for FPV racing drones (the 4000 dps wide-range gyroscope adapts to sharp rolls and flips)

## 3. Industrial Automation & IoT Devices

- Attitude detection and tilt calibration for AGV/RGV robots and collaborative robotic arms

- Equipment vibration monitoring, motor fault diagnosis, cabinet tilt anti-theft alarm

- Attitude collection for smart remote controllers, handheld measuring instruments and portable testing terminals

## 4. Other Applications

Motion-sensing game controllers, closed-loop attitude control for self-balancing scooters and electric skateboards, auxiliary portable navigation and positioning
