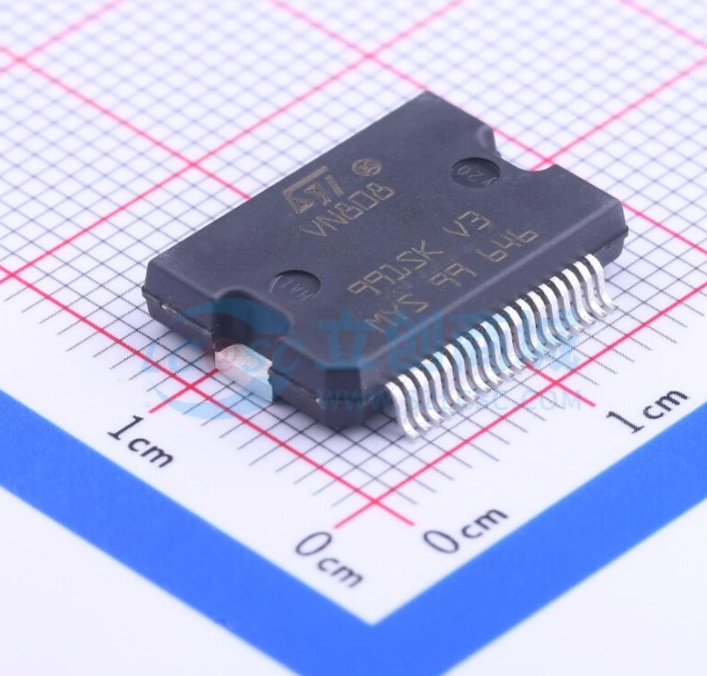

VN808TR-E (STMicroelectronics), 8-Channel High-Side Smart Power Switch

8-Channel High-Side Smart Power Switch (Octal High-Side Driver)Fabricated with VIPower M0-3 technology, housed in PowerSO-36 SMD package; TR denotes tape-and-reel packaging. This industrial-grade device is designed to drive grounded resistive, inductive and capacitive loads. It integrates comprehensive smart protection functions and is widely adopted in PLC industrial control systems.

II. Key Electrical Parameters

Supply Voltage VCC: 10.5 V ~ 45 V (typical for 24 V industrial systems)Number of Channels: 8 independent outputsContinuous Output Current per Channel: 700 mAOn-State Resistance Rds(on): Typical 150 mΩInput Logic Level: VCC/2 compatible logicOperating Temperature: -40 ℃ ~ +125 ℃Package: PowerSO-36 SMD

IV. Applications (Main Industrial Scenarios)

1) PLC Programmable Logic Controllers (Core Market)

PLC digital output modules, remote I/O modules for driving external solenoid valves and relays

2) Industrial Automation

Solenoid valve arrays for production lines, actuator drivers, industrial indicator load switches

3) Equipment Electronic Control Systems

Multi-load control for textile machinery, packaging equipment and test instruments

4) Construction Machinery Electronic Control

Driving multi-channel lamps, solenoid valves and small actuators

5) Building & Smart Equipment

Driving multi-channel LED loads, access control units and small actuators
