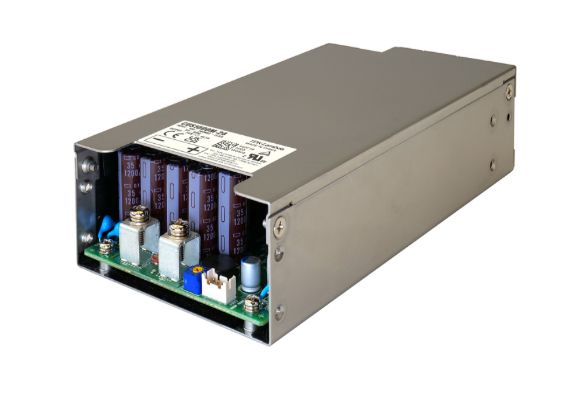

CUS800M – TDK-Lambda CUS-M Series 800W Ultra-Thin Single Output Medical Power Supply

The CUS800M is an 800W ultra-thin single-output switching power supply for both medical and industrial applications under TDK-Lambda CUS-M series. The letter "M" stands for Medical certification. It features 2×MOPP double medical isolation and complies with ITE safety standards simultaneously. Boasting compact dimensions, high efficiency and low-noise fan, it is ideal for powering medical equipment, test instruments and industrial control complete machines.

II. Key Electrical Specifications

1. Input Specifications

• Input Voltage: Universal wide-range mains 85～265VAC (47–63Hz), full power output available starting from 90VAC

• Input Current: Approx. 8A @ 115Vac / 4A @ 230Vac

• Power Factor: 0.95~0.99, compliant with IEC61000-3-2 Class A

• Cold-start Inrush Current: Typical 25A / 50A

• Output Hold-up Time: 14ms

• Standby Power Consumption: ＜0.6W under shutdown no-load condition
