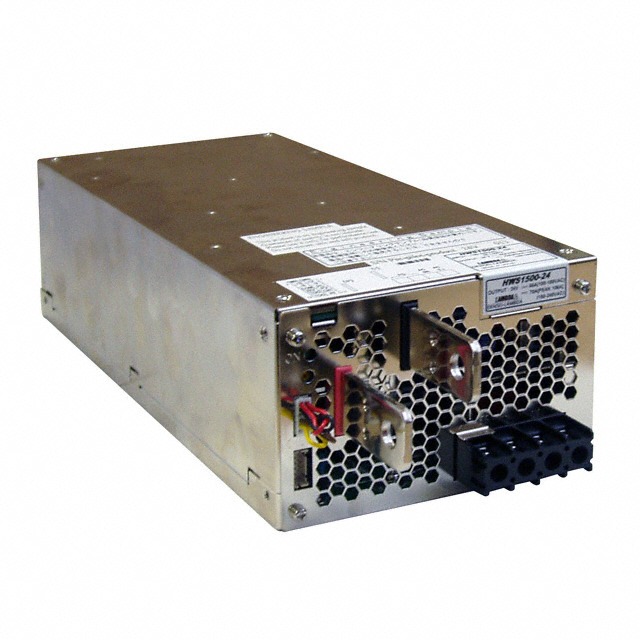

TDK-Lambda General Industrial Enclosed Single Output Switching Power Supply Series HWS1500-24

. Input Specifications

AC Input: Full-range 85～265 VAC, 47～63 HzCompatible DC Input: 120～330 VDCTypical Input Current: Approx. 19.5 A @ 100 VAC / Approx. 10 A @ 200 VACCold Inrush Current: 20 A (200 VAC) / 40 A (100 VAC)PFC Power Factor: ≥ 0.95

2. Output Specifications (Key Parameters)

Rating: 24 V / 65 A = 1500 WContinuous Maximum Load: 70 A, Max. Output Power 1680 WShort-term Peak Current: 105 A, Peak Power 2520 W (For short-duration surge loads)Output Adjustable Range: 19.2～28.8 VDC (±20% adjustment range)Conversion Efficiency: Typical 88%Output Channels: Single output

3. Protection Functions

Over Voltage Protection (OVP), Over Current Protection (OCP), Short-circuit Protection, Over Temperature Protection, Remote On/Off, Remote Sense

V. Common Suffix Definitions

HWS1500-24: Standard industrial modelHWS1500-24/ME: Medical compliance model (IEC60601 standard)HWS1500-24/HD: Conformal coated, enhanced version for harsh environmentsHWS1500-24/R: Equipped with remote control interface
