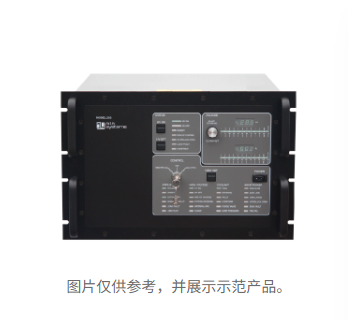

TDK-Lambda ALE Series Water-Cooled Rack-Mount High Power Negative High Voltage DC Power Supply (Special for Capacitor Charging)

Input

Phase: 3-PhaseInput Voltage Range [AC]: 340～460 VACInput Frequency Range: 47～63 Hz

Output

Rated Output Voltage [DC]: 10000 VdcOutput Voltage Range [DC]: 0～10000 VdcAverage Capacitor Charging Power: 30000 J/secPeak Capacitor Charging Power: 37500 J/secCharging Current: 7.5 AContinuous DC Current: 5 AContinuous DC Power: 40 kWPolarity: Negative Output

Performance

Power Factor: 0.9Efficiency: 85% Typ.

Product Features

• High-power 40 kW continuous output with high-speed pulsed capacitor charging capability;

• Wide-range continuously adjustable negative high voltage from 0 to 10 kV with outstanding voltage regulation accuracy;

• Wide-range 3-phase industrial input compatible with factory power supplies worldwide;

• Water-cooled, rack-mount integrated design for easy cabinet integration into automated production lines;

• Multiple high-voltage safety protections with low residual stored energy to reduce electric shock hazards.
