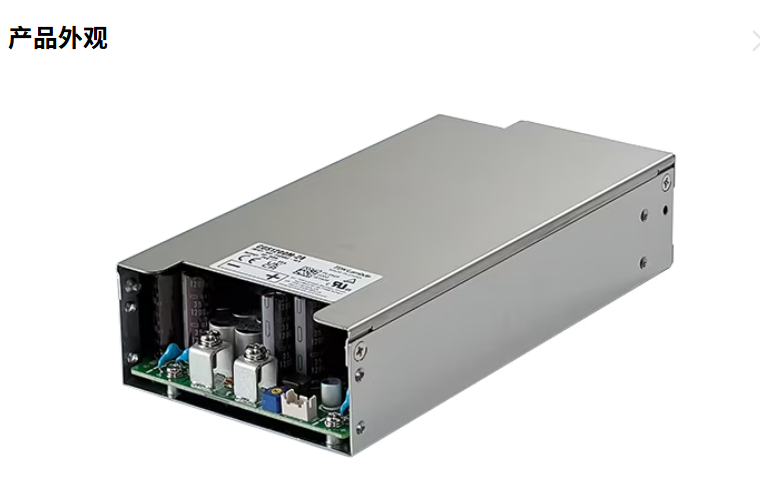

CUS1200M-24 is a 1200W single-output medical-grade enclosed AC-DC switching power supply.

English Professional Translation (for Datasheet & Overseas Sales)

Brand: TDK-Lambda (Industrial & medical power supply subsidiary under TDK)CUS1200M-24 is a 1200W single-output medical-grade enclosed AC-DC switching power supply. The CUS-M series is engineered for medical and high-end industrial equipment, complying with the medical safety standard IEC 60601-1 as well as the ICT equipment standard UL62368-1.

Model Definition

CUS: Series designation, dual-purpose enclosed power supply for medical and industrial applications1200: Rated power of 1200WM: Medical grade24: Rated DC output voltage of 24V

II. Core Functions

High-power Conversion from Mains AC to Stable 24V DC

It converts 85~265V alternating current into 24V direct current to supply the main power circuit of complete machines. Equipped with active PFC, it delivers low harmonic distortion and strong adaptability to power grids.

Safe Isolated Power Supply for Medical Devices

It features 4000Vac reinforced isolation between input and output, with leakage current less than 250μA. It meets insulation and leakage safety requirements for Type B/BF medical devices to prevent electric shock hazards.

Multi-channel Auxiliary Monitoring & Remote Control

Comes standard with a 5V/2A standby power rail, remote on/off, remote sense and power good (PG) signal. These functions facilitate system control and voltage compensation to eliminate voltage drop over long output cables.

Low Noise & High-efficiency Heat Dissipation

Built-in variable-speed temperature-controlled fan runs at low speed of only 30dBA under light load and 42dBA at full load. It achieves a maximum conversion efficiency of 95.5% with low heat generation, and its compact body saves cabinet space.

Comprehensive Protection Functions

Integrated OVP (Over Voltage Protection), OCP (Over Current Protection), short-circuit protection and thermal protection. The unit latches off automatically upon faults to protect downstream loads.

III. Key Electrical Specifications

1. Input Specifications

• Input voltage: Full-range single-phase 85～265VAC; full power output available starting from 90VAC

• Active PFC (Power Factor Correction), compliant with harmonic standard EN61000-3-2

• Standby power consumption: <0.6W under standby mode

2. Output Specifications (CUS1200M-24)

• Rated output: 24VDC

• Rated power: 1200W

• Rated output current: 50A

• Auxiliary standby output: 5V / 2A (permanent power for equipment standby control)

3. Isolation & Safety Compliance

• Isolation voltage between input and output: 4000VAC

• Earth leakage current: <250μA, conforming to medical device standards

• Certifications: IEC/EN/UL 60601-1 (Medical), UL62368-1, CE, UKCA, RoHS

• EMI performance: Class B conducted & radiated emissions, simplifying overall EMC certification for end products

4. Environmental & Mechanical Specifications

• Dimensions: 187 × 93 × 42.5 mm (ultra-thin height of 42.5 mm / 1.67 inches)

• Cooling: Built-in variable-speed temperature-controlled fan

• Operating temperature: -20℃ ~ +70℃; linear power derating required at high temperatures

• Acoustic noise: 30~42dBA

• Protections: Automatic shutdown triggered by overvoltage, overcurrent, short circuit and overheating

IV. Application Scope

1. Medical Equipment (Primary Application)

• Dental diagnostic equipment, ultrasound imaging devices, surgical instruments

• Patient monitors, rehabilitation therapy devices, in-vitro diagnostic equipment

• Main control and driver power supply for all Type BF medical devices

2. Industrial Automation & Test & Measurement

• Industrial inspection instruments, semiconductor test equipment

• High-power servo and solenoid module power supply for automated production lines

• High-precision laboratory test platforms

3. Broadcasting, Audio & Video, Communications

• Broadcast production equipment, professional studio devices, server cabinets

• High-power power supply for high-end communication base stations and industrial switches

4. Other High-end Equipment

• Laser equipment, 3D printers, large intelligent machinery

• All high-power 24V systems requiring medical-grade insulation, low leakage current and low noise

V. Preferred Application Scenarios

This model is the priority choice for system power solutions that demand 1200W high-power 24V output, medical safety certification, low leakage current, low acoustic noise, remote control functions and compact ultra-thin cabinet mounting space.
