High-Speed Response NTC Thermistors: Balancing Rapid Thermal Response with Compact, Low-Profile Form via Integrated Substrate Structure to Drive Thermal Management Innovation

Driven by the rapid advancement of fast-charging electric vehicles (EVs) and high-power power semiconductor devices, real-time thermal management that captures abrupt temperature fluctuations has become increasingly critical. This document introduces high-speed response NTC thermistors featuring a distinctive integrated thin substrate molded directly onto the heat-receiving surface, overcoming the limitations of traditional encapsulated NTC thermistors.

While maintaining a miniaturized, slim profile, these components deliver outstanding thermal responsiveness and reliability. They enable high-precision temperature sensing within confined spaces of automotive batteries and industrial equipment, delivering robust support for next-generation safe thermal management designs.

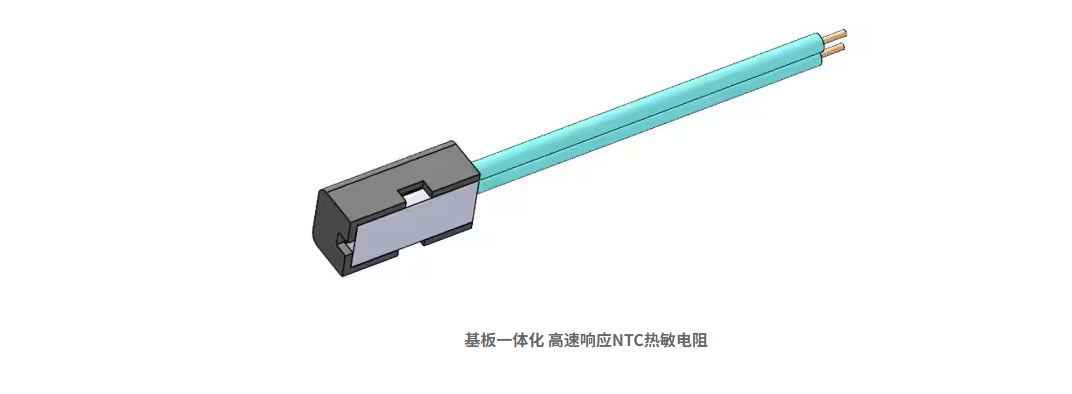

Product Description

This compact wired NTC thermistor features a highly thermally conductive thin substrate integrally formed on its heat-receiving surface. Its standout advantage lies in the shell-free construction that minimizes the heat transfer path. By eliminating the housing material and filler resin found in conventional encapsulated NTC thermistors, thermal resistance between the heat source and sensing element is reduced to the lowest level, delivering far faster thermal response than traditional counterparts. Moreover, its slim profile allows mounting in ultra-narrow spaces that were previously inaccessible.

Core Design: Optimized Heat Conduction Path & Low Thermal Capacity

Compared with conventional encapsulated NTC thermistors, this product drastically accelerates thermal response via optimized heat conduction paths, while adopting a thin form factor for confined installation spaces. The integrated design of the sensing substrate and sensing element cuts thermal resistance to a minimum, enabling direct heat transfer to the sensor chip. In addition, reduced sensor thermal capacity permits detection of subtle temperature shifts within an extremely short period. We select appropriate thin substrates based on application requirements and cost targets to lower the thermal time constant.

Reliability Design: Balanced Mechanical Mounting & Thermal Bonding for Harsh Environments

Conventional encapsulated NTC thermistors contain housings or filler resin between the sensing chip and heat source, which introduce thermal resistance and slow down response speeds. This product replaces traditional resin components with metal to boost thermal conductivity. It is engineered for mechanical fastening via lug terminals or clamps, ensuring consistent stable thermal bonding even under sustained vibration conditions.
