SCL3300-D01 is a high-performance 3-axis MEMS inclinometer of Murata.

# CL3300-D01

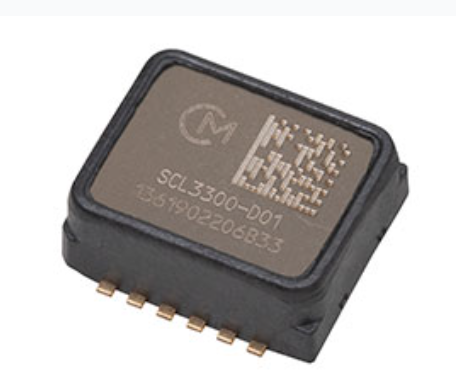

SCL3300-D01 is a high-performance 3-axis MEMS inclinometer from Murata. It adopts capacitive 3D-MEMS technology with an on-board angle calculation ASIC, outputting tilt angles directly, unlike a standard accelerometer. It integrates mechanical damping for excellent vibration resistance, featuring high stability for industrial use, and is packaged in a 12-pin molded SMD package.

>

> Sales note for differentiation: It is different from IMUs such as the LSM6DSO. It is designed for static / quasi-static tilt measurement and not suitable for high-speed dynamic attitude applications. Its advantages include low long-term temperature drift, vibration immunity and direct angle output, so the MCU does not need to perform arctangent calculations.

## Key Specifications

- Sensing: X/Y/Z 3-axis tilt measurement

- Tilt Range: ±90°; acceleration range ±1.2 g / ±2.4 g (4 selectable measurement modes)

- Angle Resolution: 0.0055 °/LSB; noise density as low as 0.001°/√Hz

- Zero-point Temperature Drift: ±0.005 °/℃ with excellent long-term stability

- Supply Voltage: 3.0 V ~ 3.6 V

- Typical Current Consumption: 1.2 mA

- Interface: Digital SPI

- Package: 8.6 × 7.6 × 3.3 mm, 12-pin pre-molded SMD

- Operating Temperature: -40 ℃ ~ +125 ℃ (wide industrial temperature range, AEC-Q100 Grade 1 qualified)

- Features: Built-in self-diagnosis, mechanical damping structure to suppress vibration interference; angle conversion processed internally

## Functions

1. 3-axis tilt and levelness measurement; direct angle output from the chip to reduce MCU computing load

2. Equipment leveling and closed-loop horizontal control, real-time tilt deviation feedback

3. Tilt over-limit alarm and attitude limit monitoring

4. Long-term monitoring of structural deformation and tiny inclination (Structural Health Monitoring, SHM)

5. Tilt acquisition in vibrating environments. Its built-in damping prevents reading jumps caused by vibration compared with ordinary accelerometers

6. Tilt compensation for navigation, AGVs and construction machinery attitude correction

7. On-chip self-test for system fault diagnosis

## Applications

- Construction machinery: Leveling control for excavators, cranes, aerial work platforms and pavers

- Structural monitoring: Tilt monitoring for bridges, transmission towers, foundation pits and photovoltaic supports (SHM)

- Automation equipment: Robots, AGVs, lifting platforms and machine tool leveling calibration

- Surveying instruments: Total stations, high-precision electronic levels

- Tilt compensation for positioning and navigation systems

- Solar tracking brackets and radar gimbal tilt control

- Attitude safety monitoring for on-board and heavy-duty equipment
