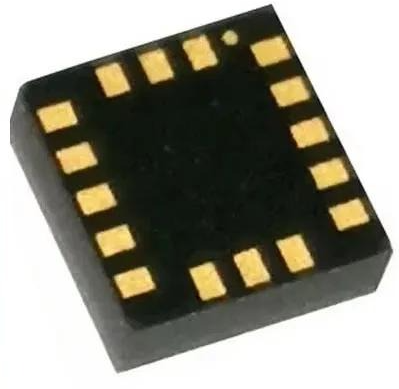

LIS2DW12TR | ST, STMicroelectronics | Axial MEMS Digital Accelerometer

II. Core Performance Parameters

form

project

parameter

Measurement range

±2g / ±4g / ±8g / ±16g, software-switchable STMicroele...

Output rate ODR

1.6Hz～1600Hz, multiple levels selectable, STMicroele...

Data output

16-bit digital output, STMicroelectronics.

noise

Low-power mode: 1.3 mg RMS;High-performance mode, 90 μg/√Hz, STMicroele...

Supply voltage

VDD：1.62‑3.6V； IO port with independent power supply, STMicroelectronics.

electric consumption

Leakage current: 50 nA;Low-power operation < 1 μA;High-performance mode: approximately 90 μASTMicroele...

interface

I²C + SPI dual interfaces, 2 interrupt lines (INT1/INT2)

On-chip resources

32-level FIFO buffer, built-in temperature sensor, self-test function, STMicroele...

III. Built-in Hardware Function Engine (Core Highlight)

The chip features a built-in motion detection hardware engine, eliminating the need for continuous MCU computation and directly outputting interrupt signals, thereby significantly reducing the main controller's load and system power consumption. Shenzhen Shilian...:

Single/tap or double-tap gesture recognition

Free fall detection

Wake-up / Sleep (Activity-Idle Detection)

4D/6D Orientation Detection (Portrait and Landscape Modes)

Android Standard Stillness Detection

Self-Test, production line/full machine self-test sensor functionality check, STMicroele...

The Level 32 FIFO can cache multiple sets of tri-axis data, eliminating the need for frequent MCU reads. It supports scheduled batch readings, further reducing power consumption, making it suitable for battery-powered devices. Shenzhen Shilian....。

IV. Main Application Scenarios

Wearable devices: wristbands, hearing aids, portable health monitoring devices, step-counting devices, Shenzhen Shilian...

IoT wireless sensor nodes, battery-powered low-power terminals

Handheld devices: posture switching, tapping gestures, drop protection

Industrial low-power vibration and tilt detection

Smart home, remote control gesture activation.
