XBSC0402AR050GA01｜Murata Silicon Capacitor

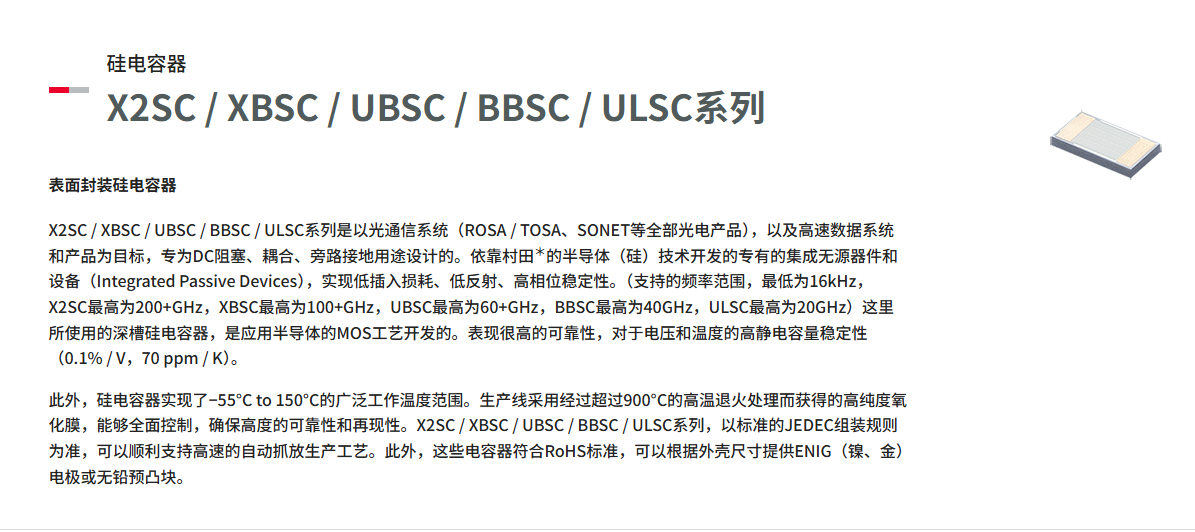

XBSC Series, 0402 SMD Silicon Capacitor, maximum operating frequency up to 100GHz

## Key Parameters

- Part Number: XBSC0402AR050GA01

- Package: 0402 (imperial) SMD

- Capacitance: 0.5pF (R050 denotes 0.5pF)

- Tolerance: ±0.25pF (Grade G)

- Rated Voltage: 50V DC

- Maximum Operating Frequency: 100GHz

- Operating Temperature: -55℃ ~ +150℃

- Temperature Coefficient: +70 ppm/K

- Parasitic Characteristics: **Ultra-low ESL and ultra-low ESR** (core advantage of silicon capacitors, superior to conventional MLCCs)

- Termination: NiAu gold-plated electrodes, compatible with reflow soldering for SMT assembly

- Compliance: RoHS

- Packaging: Tape & Reel

>

> Part Number Breakdown:

> XBSC = Series; 0402 = Package; A = Termination; R050 = 0.5pF; G = Tolerance ±0.25pF; A01 = Revision

## Functions

1. RF DC Block: Widely used in RF circuits to block DC voltage while allowing high-frequency RF / millimeter-wave AC signals to pass through.

2. High-speed Signal Coupling: Coupling transmission for high-speed differential, microwave and millimeter-wave signals.

3. RF Impedance Matching: Impedance matching for microwave and millimeter-wave circuits.

4. Bypass / Decoupling: High-frequency decoupling beside RF ICs.

>

> Core Advantages: Capacitance has minimal variation with voltage and temperature, low aging drift; ultra-low parasitic inductance ESL at high frequencies, much lower loss than NP0/COG MLCCs at tens of GHz.

## Application Scope

- Optical communication: TOSA/ROSA optical subassemblies, TIA transimpedance amplifiers, silicon photonic modules CPO/NPO

- Microwave / Millimeter-wave RF: Sub-6G, 77GHz automotive radar, broadband RF test instruments

- High-speed SerDes, high-speed data interfaces

- Broadband RF front-end circuits up to 100GHz

>

> Suitable for high-frequency designs requiring stable low capacitance and ultra-low parasitic parameters; not intended for low-frequency high-capacity power energy storage.

XBSC0402AR050GA01 is a Murata XBSC series silicon capacitor in 0402 package, rated 0.5pF / 50V with maximum frequency up to 100GHz. It features ultra-low ESL and tiny capacitance drift over voltage and temperature. Commonly used for RF DC blocking and high-speed signal coupling in millimeter-wave and optical TOSA/ROSA modules, delivering far better high-frequency performance than ordinary MLCCs.
