HWS600P‑48 | TDK‑Lambda (Dongdianhua Landa) | AC‑DC enclosed switching power supply, HWS‑P peak power series

input

AC: 85-265VAC, 47-63Hz, global wide-voltage input

Compatible with DC input: 120‑330VDC

Power Factor: 100VAC ≈ 0.99;200VAC≈0.94

output

Rated: 48VDC / 12.5A, average power 600W

Peak (within 5 seconds): 41.5A, peak power 1992W (3 times rated)

Output adjustable: 38.4‑52.8VDC

Ripple noise: 350 mV p-p

Typical efficiency: 86–87%

Protection: Overvoltage (OVP) 55.2‑64.8V, Overcurrent (OCP), Overtemperature (OTP), Overheat (OTP), Short-circuit protection, and Short-circuit protection.

Functions: Remote ON/OFF, remote monitoring, supports multi-unit parallel operation with current equalization, and can operate with DC input.

II. Appearance, Structure, and Environmental Conditions

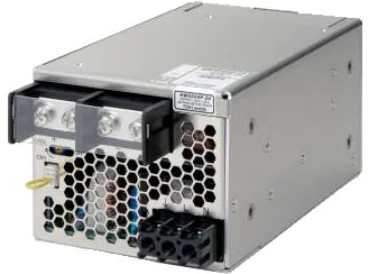

Structure: Metal enclosed chassis, panel-mounted, natural convection heat dissipation (no built-in fan)

Dimensions: 165 (L) × 100 (W) × 82 (H) mm; Weight: approximately 1.6 kg

Operating temperature: -10°C to +70°C; Full power is allowed below 50°C; derating is required above 50°C.Storage: -30°C to +85°C

Warranty: Original manufacturer's limited lifetime warranty; Complies with RoHS; Meets industrial EMC immunity standards, TDK-Lambda...

III. Key Differences from the Standard Model HWS600-48

form

project

HWS600P‑48

HWS600‑48

Peak capacity

300% power, 5-second short-term surge.

No 3x peak, only rated power can be sustained.

Rated output

48V 12.5A 600W

48V 13A 624W

typical use

Electric motors, stepper motors, impact loads

Stable static load

to dissipate heat

Natural air cooling

Natural air cooling

HWS600P‑48 is an upgraded replacement model for JWS480P‑48, which has been discontinued by TDK Produc....。

IV. Typical Application Scenarios

Industrial Automation: Stepper/Servo Motor Drive, Solenoid Valve Shock Start-up

Test and measurement equipment, semiconductor equipment

48V Industrial Power Supply, Communication Front-End Power Supply

Devices that experience instantaneous high-current surges on load, with low static power consumption but very high current during startup.

Important reminder: The 3x peak can only last for less than 5 seconds and cannot be sustained; The duration must be kept within 12.5A. Exceeding the time limit may trigger protection mechanisms or damage the TDK-Lambda power supply....。

V. Summary of Advantages and Disadvantages

✅Advantage

It supports wide AC input and also offers DC input;

Strong short-term peak capacity, with clear advantages in motor-type load selection;

Fanless, low noise, and high reliability; Supports parallel expansion;

Industrial-grade anti-interference capability, easy panel installation.
