IAM-20680HP High-Performance Automotive 6-Axis Motion Tracking Sensor

## I. Official Name

IAM-20680HP (Brand: TDK/InvenSense)

Full Name: High‑Performance Automotive 6‑Axis Motion Tracking Device

Chinese: High-performance automotive 6-axis motion tracking sensor (IMU, Inertial Measurement Unit)

## II. Core Functions

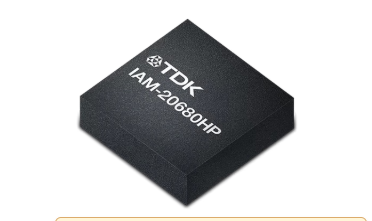

It integrates a 3-axis gyroscope and a 3-axis accelerometer within a 3×3×0.75 mm LGA‑16 package, precisely detecting motion, attitude, angle and acceleration of objects.

✅ Gyroscope (angular velocity): rotation direction, tilt angle and rotation speed

✅ Accelerometer (linear acceleration): vibration, shock, collision and attitude variation

✅ Output 16-bit high-precision digital signals, communicates with MCU via I²C / SPI interface

## III. Key Specifications

Axes: 6-axis (3-axis gyroscope + 3-axis accelerometer)

Measurement Ranges:

Gyroscope: ±250 / 500 / 1000 / 2000 dps (programmable)

Accelerometer: ±2 / 4 / 8 / 16 g (programmable)

Operating Temperature: −40℃ ~ +105℃ (automotive high-temperature variant)

Supply Voltage: 1.71 ~ 3.6V, low power consumption

Certifications: AEC‑Q100 (automotive grade), PPAP, RoHS

## IV. Application Scope

1. Automotive Electronics (Primary Market)

Navigation / Vehicle Positioning: Dead reckoning positioning backup for tunnels, underground parking garages and urban canyon areas where GPS signal is lost.

Smart Cabin: HUD head-up display, steering wheel attitude detection, automatic rearview mirror adjustment.

Body Control: Motion detection for power liftgates / sliding doors, window anti-pinch, seat attitude monitoring.

Telematics / TCU: Collision detection (trigger emergency call), driver behavior analysis.

2. Industrial & IoT

Attitude monitoring and vibration analysis for industrial equipment

Motion control for drones and robots

Smart gimbals, AR/VR devices

3. Advantages over standard IAM-20680

HP = High Performance: Wider temperature range (−40～105℃ vs 85℃ for standard version), superior thermal stability and lower gyro noise, suitable for high-temperature and high-vibration automotive environments.

## V. Summary

IAM-20680HP is a TDK/InvenSense automotive-grade 6-axis IMU with high temperature resistance and high precision. It is designed for vehicle positioning, attitude and motion sensing, serving as a core sensor for automotive navigation and smart cabin systems.
