EFM8BB21F16I-C-QFN20R (Silicon Labs EFM8 Busy Bee 8-bit MCU)

Silicon Labs CIP-51 pipelined 8051 core microcontroller, belonging to the EFM8BB2 Busy Bee general-purpose 8-bit MCU family. It features compact size, integrated analog front-end and abundant peripherals. Suitable for various control, sensor acquisition and small motor driving solutions. It is an upgraded alternative to traditional 8051 MCUs with better performance and higher integration.

## Key Specifications

1. Core: CIP-51 (pipelined 8051), maximum operating frequency up to 50 MHz

2. Memory: 16 KB Flash; 2.25 KB RAM

3. I/O: 16 digital I/O pins, I/O pins 5V-tolerant

4. Analog Modules: 12-bit ADC with 15 external channels; 2 analog comparators; integrated on-chip temperature sensor

5. Timer / PWM: 5 × 16-bit general-purpose timers; 3 × PCA channels (support PWM with hardware safe shutdown)

6. Communication Interfaces: 2 × UART; 1 × SPI; SMBus/I2C (master/slave) plus dedicated I2C slave

7. Power Supply: Operating voltage 2.2V ~ 3.6V, integrated LDO

8. Temperature Range: Industrial grade -40℃ ~ +125℃

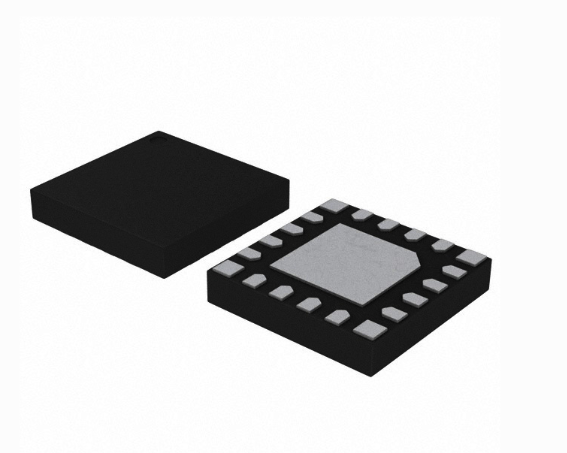

9. Package: QFN20 (3×3mm), tape & reel

10. System Protection: Watchdog Timer (WDT), Brown-out Detection (BOD), Power-on Reset (POR), hardware 16-bit CRC check

## Functions

1. Analog Signal Acquisition: 12-bit ADC collects sensor voltage signals (temperature, pressure, current sampling). The built-in temperature sensor monitors the die temperature of the chip.

2. PWM Output Control: 3-channel hardware PWM for LED dimming, small motors and buzzers. Hardware kill safety mechanism to automatically disable PWM upon fault conditions.

3. Multi-protocol Serial Communication: UART/SPI/I2C/SMBus interfaces for communication with sensors, displays, power ICs and host MCUs.

4. General I/O Control: Control relays, keys, indicators and external switches. Flexible pin mapping via crossbar.

5. System Safety: Watchdog prevents program runaway; brown-out reset; hardware CRC verifies Flash firmware to ensure reliability.

6. Low Power Modes: Sleep / halt modes, wake-up via serial port or external I/O, ideal for battery-powered products.

## Applications

- Consumer Electronics: LED lighting, small home appliance controllers, handheld devices, battery management boards

- Sensor Modules: Various sensing acquisition boards, temperature/pressure/current transmitters

- Industrial Control: Small actuators, valve control, IO acquisition modules, miniature industrial drivers

- Motor: Small DC motors, fan control

- Medical Devices: Portable medical detection modules

- Others: Auxiliary MCU for USB peripherals, power monitoring boards, simple HMI key panels
