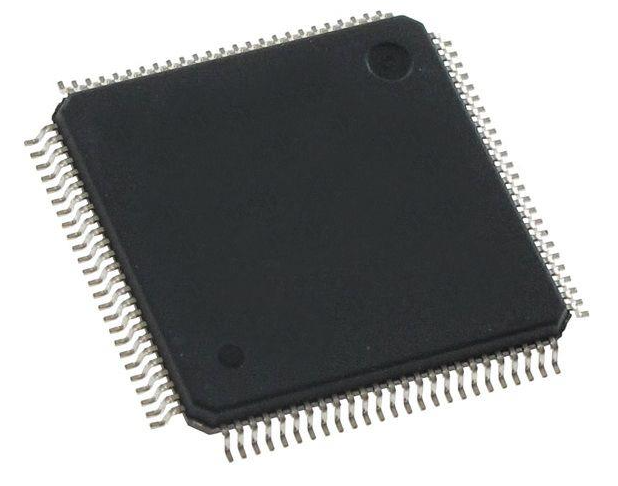

STM32H743VIT6 | STMicroelectronics | STM32H7 series | High-performance 32-bit MCU (microcontroller)

STM32H743VIT6 is a high-performance 32-bit MCU (microcontroller) from STMicroelectronics' ST STM32H7 series

II. Core Electrical Parameters

1. Kernel computation performance

Cache: 16KB Instruction L1 Cache + 16KB Data L1 Cache

Computing power: 1027 DMIPS, suitable for complex algorithms, filtering, attitude solution, and edge AI computing

Kernel: ARM Cortex-M7, with a maximum clock frequency of 480MHz

Hardware unit: Double-precision floating-point FPU + complete DSP instruction set, Memory Protection Unit (MPU)

III. Scope of Application (High-computing-power Embedded Scenario)

1. Industrial automation control (main scenario)

High-end motion controller, servo driver, multi-axis robotic arm master controller

PLC high-end module, data acquisition device, online detection equipment

Variable frequency equipment, FOC brushless motor controller, AGV vehicle main controller

Industrial gateway, Ethernet multi-device networking acquisition terminal

2. Medical testing equipment

Ultrasonic detector, blood analyzer, multi-parameter monitor

Rehabilitation therapy equipment, medical aesthetic instruments, and portable medical diagnostic hosts

Medical multi-channel signal filtering, real-time waveform computation

3. Audio and video, image, gimbal equipment

Image preprocessing for sports cameras/industrial cameras, EIS anti-shake algorithm computation (paired with LSM6DSO series IMU)

Professional gimbal, aerial drone attitude calculation, and six-axis sensor data fusion

Multi-channel audio processor, noise reduction, speech recognition equipment

High-definition LCD touch display human-machine interface (HMI)
