MP9447GL-Z | MPS (Monolithic Power Systems) | Fully Integrated High-Frequency Synchronous Step-Down DC-DC Converter (Buck Power IC)

Electrical Specifications

Input Voltage: 4.5V ~ 36V (Wide input voltage range, compatible with 24V industrial bus and 12V/24V vehicle systems)

Continuous Output Current: 5A

Output Voltage: 0.8V ~ 0.9×VIN (Max. 32.4V), adjustable via external resistors

Integrated MOSFETs: High-side 65mΩ, low-side 30mΩ; no external power MOSFET required

Reference Accuracy: ±1.5%

Switching Frequency: 200kHz ~ 650kHz (set by external resistor)

Junction Temperature Range: -40℃ ~ +125℃ (Industrial Grade)

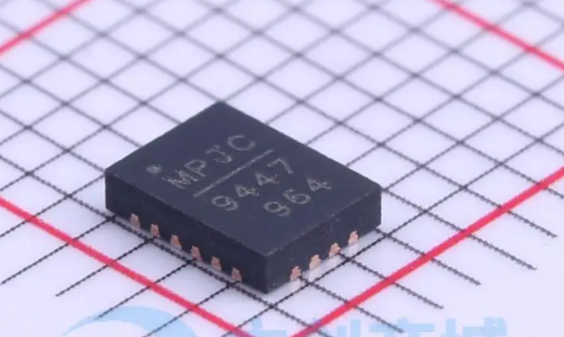

Package: QFN-25 (3×4mm), compact SMD; -Z = Tape-and-Reel (T&R) packaging

Compliance: RoHS Lead-Free

Main Features

Synchronous Buck Step-Down Conversion: Steps down high input voltage to lower output voltage. Synchronous topology delivers higher efficiency and lower heat generation compared with asynchronous diode solutions.

Fast Transient Response: Low voltage fluctuation under sudden load changes, ideal for ripple-sensitive loads such as MCUs and sensors (e.g. power supply for STM32H7 and IMU sensors).

Programmable Soft Start: Controls slow ramp-up of output voltage during power-on, suppresses inrush current and protects downstream chips.

LDO Dropout Mode: Automatically enters dropout operation when input voltage is close to output voltage to maintain regulation.

Full Protection Functions:

OCP Over-Current Protection, SCP Short-Circuit Protection

UVP Under-Voltage Lockout, OTP Over-Temperature Shutdown

Few external components, simplified BOM and small PCB footprint.

Applications

Industrial Equipment

24V industrial system step-down power supply for MCUs, sensors, IMUs and acquisition boards

Industrial controllers, servo auxiliary power supplies, portable test instruments

Embedded & Robotics

On-board power supply for AGVs and mobile robots; converts 12V/24V to 5V/3.3V for main controllers (e.g. STM32H7) and sensor modules

Power supplies for drones and motion control boards

Consumer & Non-Automotive-Grade On-Board

USB power supplies, chargers, vehicle cigarette-lighter adapters (Non AEC-Q100 automotive grade; not allowed for automotive safety-critical projects)

Power supplies for communication equipment and security monitoring mainboards
