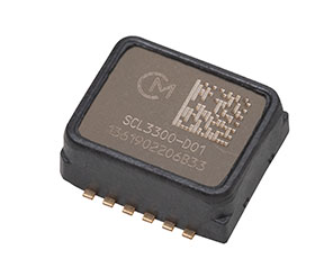

SCL3300-D01 is a three-axis inclinometer featuring angular output and a digital SPI interface. It is a high-performance inclinometer sensor assembly.

It is a three-axis inclinometer sensor with angular output based on Murata's mature capacitive 3D-MEMS technology. Signal processing is performed by a mixed-signal ASIC with a flexible SPI digital interface.

The sensor element and ASIC are housed within a 12-pin pre-molded plastic casing, ensuring reliable operation throughout the product's lifespan.

SCL3300-D01 MURATA, MEMS module, SCL3300 series, 3-axis inclinometer |

Three-axis (XYZ) inclinometer

User-selectable measurement modes: 3000LSB/g, 6000LSB/g, 12000LSB/g, 70Hz, 40Hz, 10Hz LPF

Angular output resolution 0.0055°/LSB

Operating temperature range: -40°C to +125°C

Supply voltage range: 3.0V to 3.6V

SPI digital interface

Ultra-low noise density of 0.001°/√Hz

Excellent drift stability

Dimensions: 8.6 x 7.6 x 3.3 mm (length × width × height)

SCL3300 is designed for applications that require high stability in harsh environments

Examples of main applications

spirit level

Tilt compensation

Machine control

Structural health monitoring

Inertial Measurement Unit (IMU)

robot

Positioning and navigation system
