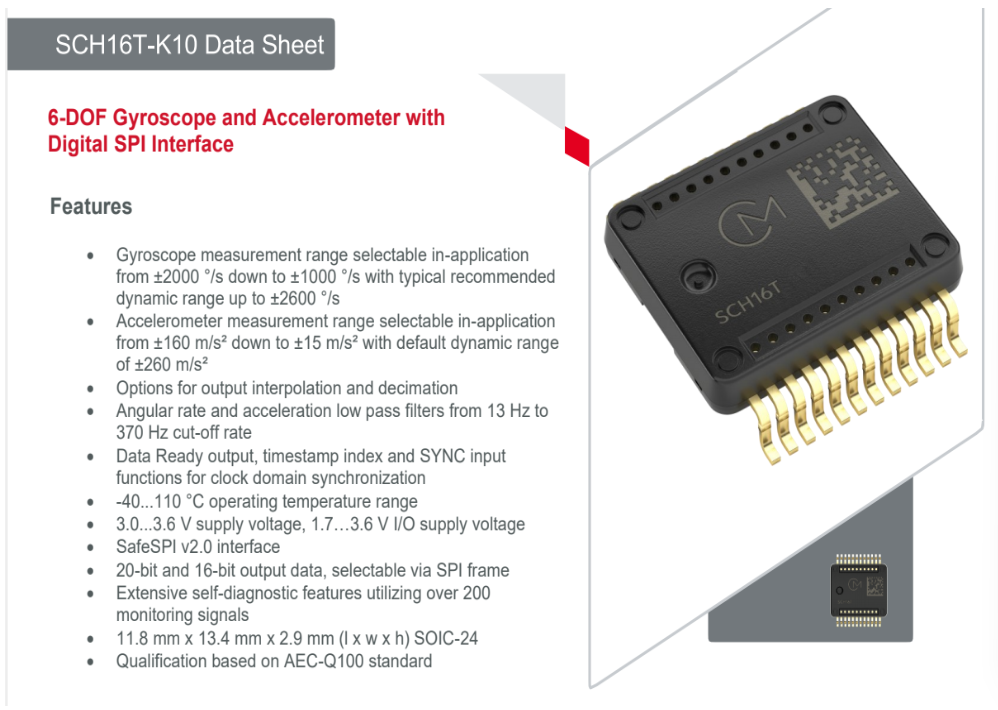

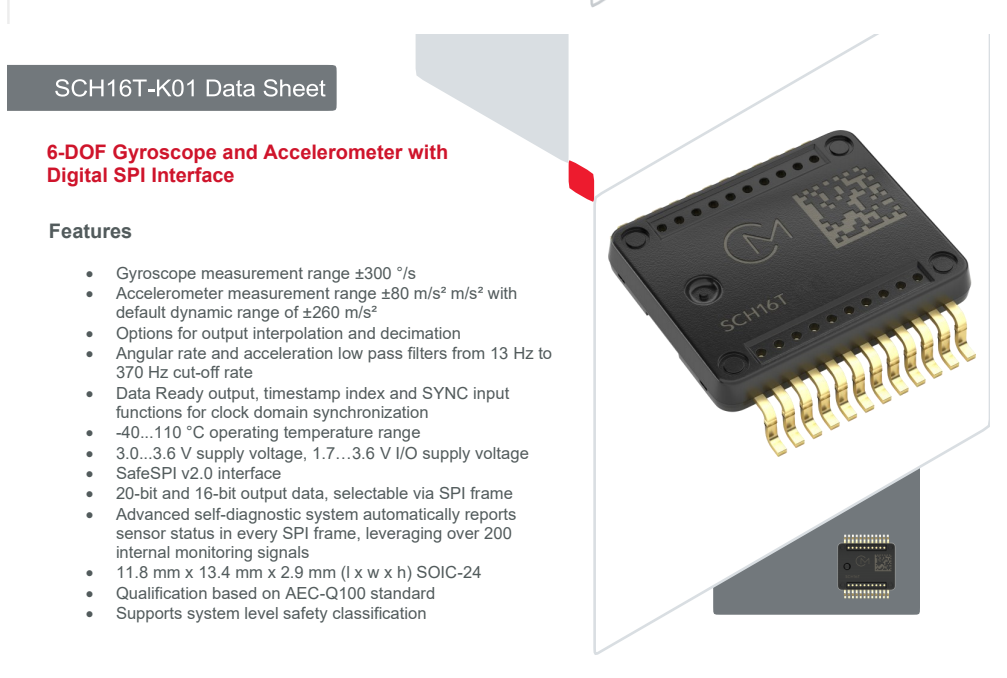

SCH16T-K10 | SCH16T-K01 | SCH16T-K20 | Murata | Murata | 6DoF Gyroscope Accelerometer

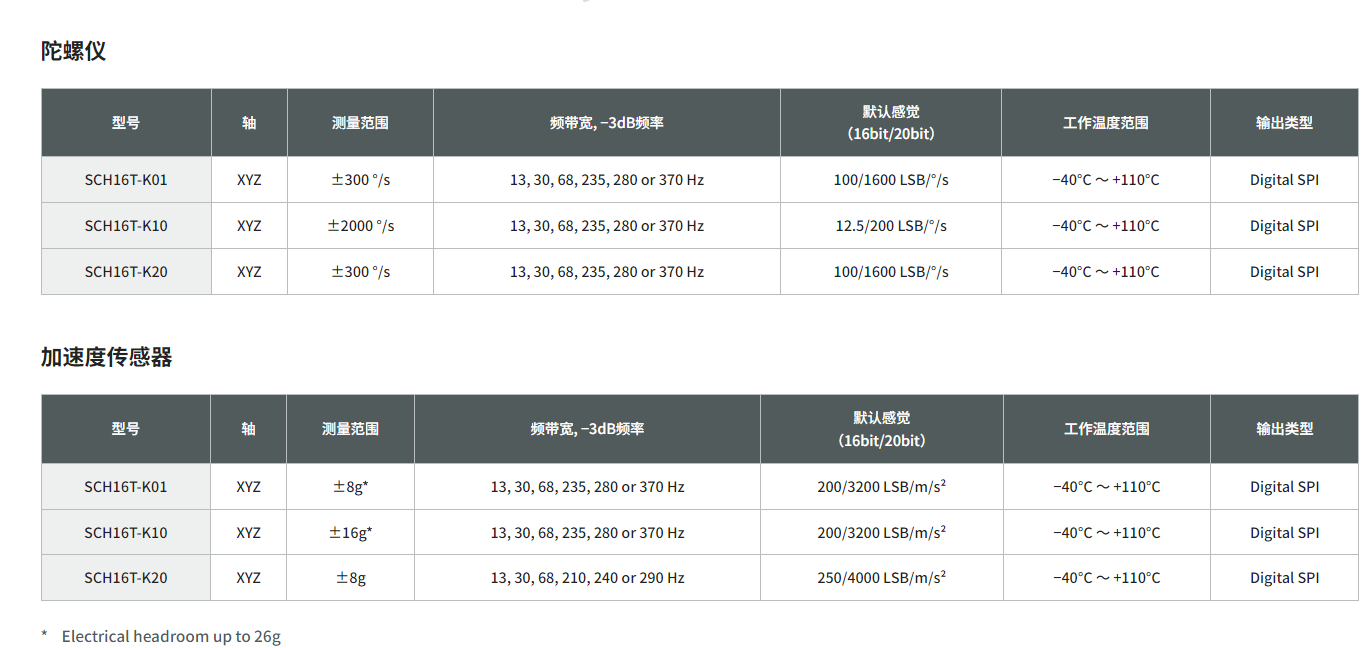

Angular rate measurement range of ±2000°/s (SCH16T-K10) or ±300°/s (SCH16T-K01 and SCH16T-K20)

Acceleration measurement range of ±16g (SCH16T-K10) or ±8g (SCH16T-K01 and SCH16T-K20)

Auxiliary digital accelerometer channel, with a dynamic range up to ±26g (only for SCH16T-K10 and SCH16T-K01)

The gyroscope bias instability is as low as 0.3°/h for SCH16T-K01 and SCH16T-K20, or 2°/h for SCH16T-K10

The noise density level of the gyroscope is as low as 0.4m°/s/√Hz for SCH16T-K01 and SCH16T-K20, or 6m°/s/√Hz for SCH16T-K10

Operating temperature range from -40 to 110°C

Supply voltage of 3.0 to 3.6V, I/O power supply of 1.7 to 3.6V

SafeSPI v2.0 interface

SCH16T series PCB products:

SCH16T-K01-PCB

Gyroscope three axes ±300 °/s + three axes acceleration ±8g

SCH16T-K10-PCB

Gyroscope three axes ±2000 °/s + three axes acceleration ±16g

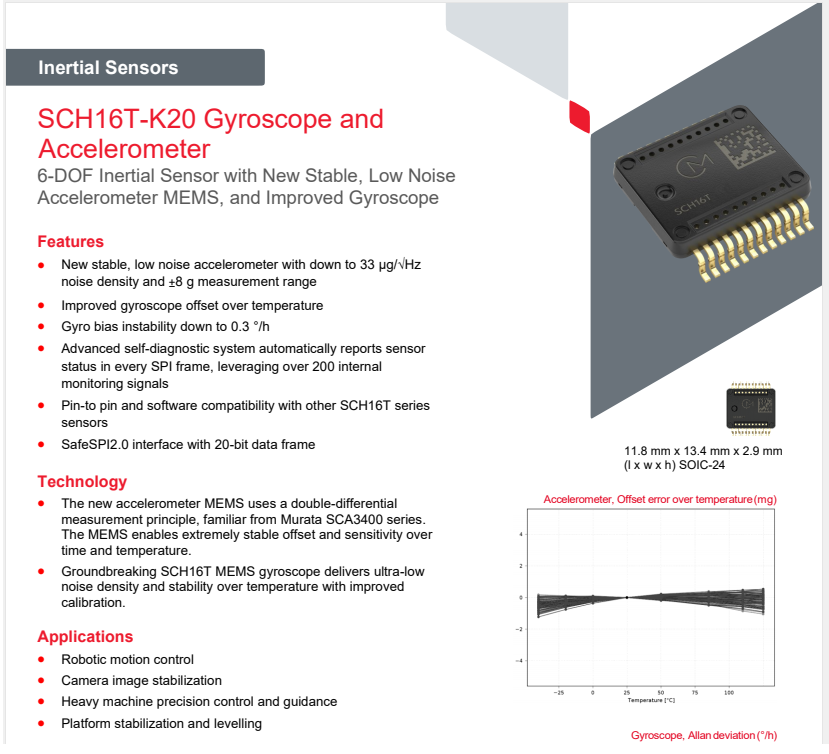

SCH16T-K20-PCB

Gyroscope three axes ±300 °/s + three axes acceleration ±8g

Representative application areas include:

High-precision Inertial Measurement Unit (IMU)

Inertial navigation and positioning

Drone flight controller

Dynamic inclination measurement

High-precision robot control and UAV

Humanoid robot control

Camera stabilization
