EKYC630 ETD152ML 30S | Nippon Chemi‑ Con (Gumi / Black King) | Wire Radial Liquid Low Impedance Aluminum Electrolytic Capacitor | Mass Production ACTIVE, RoHS Compliant, Non AEC‑ Q200 Automotive Grade, Polarized, Straight Radial Pin

Model segmented disassembly

EKYC 630 ETD 152 M L30 S

EKYC: Series code KYC, low impedance 105 ℃ radial lead aluminum electrolytic capacitor Japan Chemico...

630: Rated voltage 63V DC (63 × 10¹)

ETD: Pin terminal, sleeve specification code

152: Capacitance 15 × 10² = 0.15 μF

M: Tolerance ± 20% (-20% ~ +20%)

L30: Size code: Φ16mm x 30mm length

S: Standard tubing version

Key electrical parameters Japanese KEMICO...

form

project

parameter

Rated voltage

63V DC

Capacity

1500μf ± 20%

Operating temperature

‑40℃ ~ +105℃

Maximum ESR

25mΩ (20°C, 100kHz)

Ripple current

3580mA rms（105℃，100kHz）

Leakage current Max

945μA (after 2 minutes)

Tanδ loss angle

0.09 Max @120Hz

Durability

105°C, 5000 hours, with ripple load

High temperature without load

105℃ 500h

Terminal plating

Sn plating

weight

9.8g

Minimum packaging MPQ

500pcs/bag

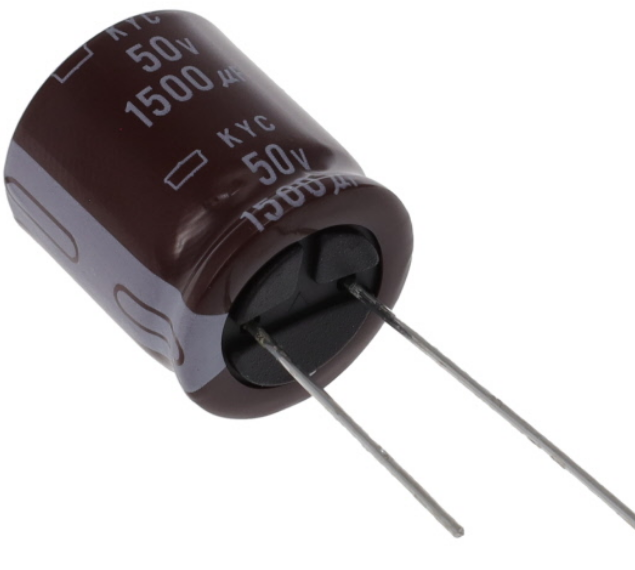

Appearance form

The cylindrical aluminum shell is radially inserted, with a brown flame retardant sleeve, and the shell is printed with KYC, voltage, and capacity markings. There are two straight plug-in wires at the bottom, and the negative electrode is marked with a white minus sign;Volume Φ16 mm, height 30 mm, plug-in through hole welding, polarized, strictly prohibit reverse connection.

Typical applications

Industrial switching power supply, high-power DC-DC power output filtering

High-power filtering for frequency converters, servo power supplies, and communication equipment

High voltage and large ripple conditions require a long-life liquid aluminum electrolysis scenario.

Industrial control equipment, high-power power supply input side energy storage filtering
