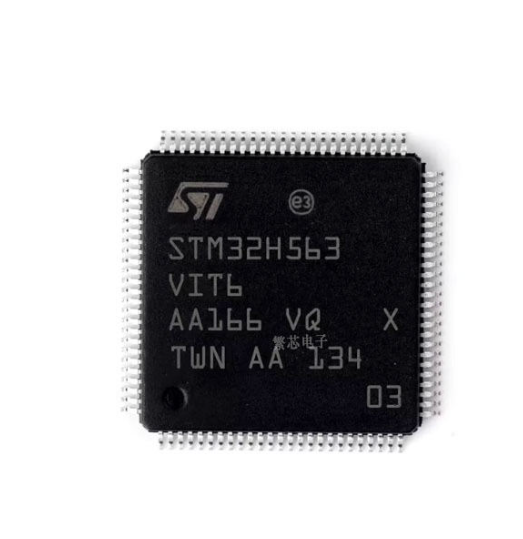

STM32H563VIT6TR, STMicroelectronics, STM32H5 Series High‑Performance 32‑bit MCU Microcontroller

Key Specifications

Core: Arm Cortex‑M33, 250 MHz maximum frequency, FPU (Floating‑Point Unit), DSP instructions, MPU (Memory Protection Unit), TrustZone security isolation

Memory: 2 MB Flash (Dual‑Bank), 640 KB SRAM, 2 KB OTP one‑time‑programmable memory

Package: LQFP‑100, 14 × 14 mm, surface‑mount device; TR = Tape & Reel packaging

IOs: 80 GPIO channels

Supply Voltage: 1.71‑3.6 V

ADC/DAC: 16‑channel 12‑bit ADC; 2‑channel 12‑bit DAC

Main Peripherals: Ethernet, USB 2.0, FDCAN / CAN‑FD, I3C, SPI, I2C, OCTOSPI, FMC external memory controller, multi‑channel advanced PWM timers, TRNG true random‑number generator

Temperature Range: ‑40 ℃ ~ +85 ℃ industrial grade

Key Features

High‑performance 250 MHz core; ART accelerator enables zero‑wait‑state Flash execution, suitable for complex algorithms and RTOS real‑time systems.

Hardware‑based TrustZone security with secure / non‑secure domain isolation; supports firmware encryption and anti‑tampering for devices requiring data security.

Comprehensive industrial communication interfaces: Ethernet, CAN‑FD and I3C for direct connection to industrial buses.

Powerful timers supporting multi‑axis motor PWM control.

OCTOSPI / FMC interfaces for external SDRAM and Flash to expand memory resources.

Integrated true random‑number generator for encryption and IoT security authentication.

Applications

Industrial Automation: PLCs, multi‑axis motor control, industrial gateways, data acquisition units, test and measurement instruments

Secure IoT Devices: Encrypted IoT gateways, edge acquisition terminals

Medical Devices: Embedded main controllers for monitoring and physiotherapy equipment (compliant with basic security requirements)

Smart Hardware: High‑end smart home controllers, HMI human‑machine interfaces, small‑to‑medium display devices

Drones / Robots: Flight controllers and motion controllers requiring high computing power, security and multi‑bus interfaces

Communication Equipment: Small‑scale network devices, Ethernet terminal controllers
