CUS600 M-12/EF | TDK-Lambda | 600W Medical Grade AC-DC Power Supply;‑12 = 12V output, /EF = metal enclosure + built-in rear fan version

I. Appearance and mechanical structure (/EF closed fan version)

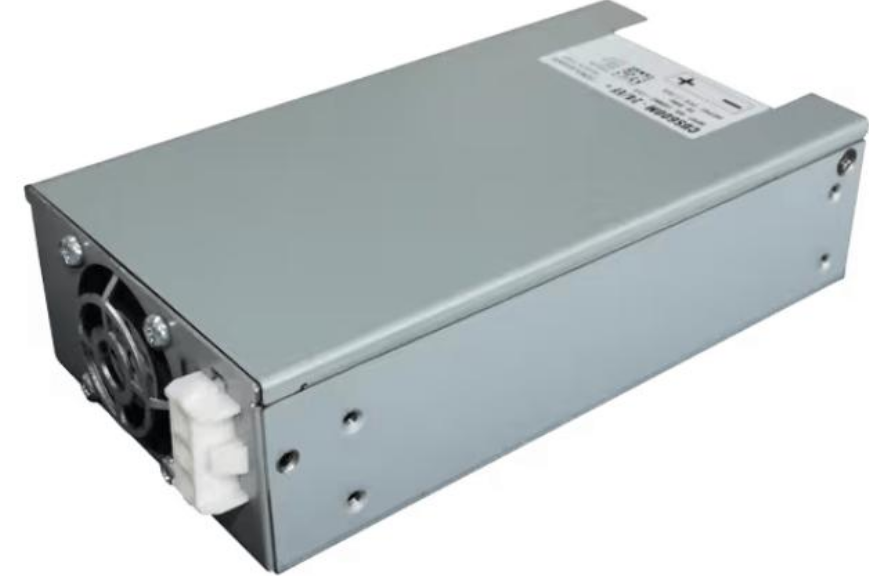

Appearance: Metal all-enclosed casing, built-in exhaust fan at the end, integrated whole machine, different from bare board open rack CUS600 M-12 (no EF suffix) TDK Produc...

Dimensions: 157 x 85 x 42.5 mm (less than 1U height), weight about 790g TDK products...

Interface: one end is AC input terminal, the other end is DC high power output terminal; The side shell has reserved holes for the installation of the entire machine; The nameplate and parameter label are attached to the top surface of the casing.

Heat dissipation: built-in rear fan forcibly exhausts air; Typical fan noise is 42dB; The fanless convection mode can only output 400W, and the fan must be turned on to output 600W.

Comparison: CUS600M-12 (without EF) is a bare board open rack, which requires a complete design of the casing and air duct; /EF directly with shell + fan, integrated whole machine is more convenient TDK-Lambda...。

2. Core electrical parameters

Input specifications

AC universal input: 85‑ 265VAC, 47‑ 63Hz, supports the use of I-class grounded and II-class non-grounded equipment, built-in PFC power factor correction TDK-Lambda...

Output specifications

Main output: 12VDC, forced air cooling maximum 50A, rated 600W; Maximum convective cooling 400W (peak short-term 600W)

Output adjustable: 11.7 ~ 12.9V (± 2.5% range fine-tuning)

Auxiliary standby output: standard 5V / 2A, device standby power supply

Efficiency: Typical 94.3%, Maximum 96%; Output power consumption is less than 0.5W when the output is off and the load is empty.

Standard features: Remote On/Off, Remote-Sense remote compensation, Power-Good power normal signal

Full set of built-in protection

OCP overcurrent, short-circuit protection: automatic recovery

OVP Over Voltage Protection: Lock-out protection, power-off restart reset

OTP over-temperature protection: shutdown when temperature is too high, recovery when temperature drops

III. Safety isolation, EMC, and environmental reliability

Medical safety regulations: IEC/EN/UL61601-1, 2×MOPP double patient protection, can be used for BF class medical equipment;At the same time, it has the ITE 62438-1 certification, CE, RoHS compliance TDK Produc...

Isolation voltage rating: input-output 4000 VAC (2 MOPP); Input - casing 2000 VAC;Output - casing 1500 VAC, medical low leakage current design, leakage current < 0.2 mA

EMC: Native compliance with EN55011-B, EN55032-B class conduction radiation EMI, the whole machine does not need to add complex EMI filter TDK-Lambda...

Operating temperature: ‑20 ℃ ~ +70 ℃, high temperature needs to be reduced;Storage -40~75°C;Maximum working altitude 5000 meters

Anti-vibration and shock: meet the vibration and shock standard of medical equipment

IV. Analysis of Strengths and Weaknesses

✅advantage

/EF closed fan version, ready to use, no need to design the fan shell yourself, shorten the overall development cycle

True medical grade 2MOPP isolation, while compatible with industrial ITE devices; Supports I/II class complete machines

B grade EMC built-in, the workload of system EMC rectification is greatly reduced

Standard configuration: 5V standby, remote control, remote voltage compensation, suitable for complex integrated systems

High conversion efficiency, low standby power consumption, suitable for devices that need to be idle.

Convection mode 400W, peak 600W, both silent and peak impact load

V. Typical application scenarios

Medical equipment: in vitro diagnostic analyzers, life science instruments, monitoring, clinical auxiliary equipment (BF class)

Industrial testing equipment, semiconductor testing equipment, laboratory instruments

Robots, industrial automation, special equipment requiring medical safety regulations

A complete system with 12V high power, low EMI, and standby power is needed.
