PFE500 SA-28, AC-DC full brick power module, rated 504W, 28V output, with PFC power factor correction, commonly used power module for industrial / communication equipment

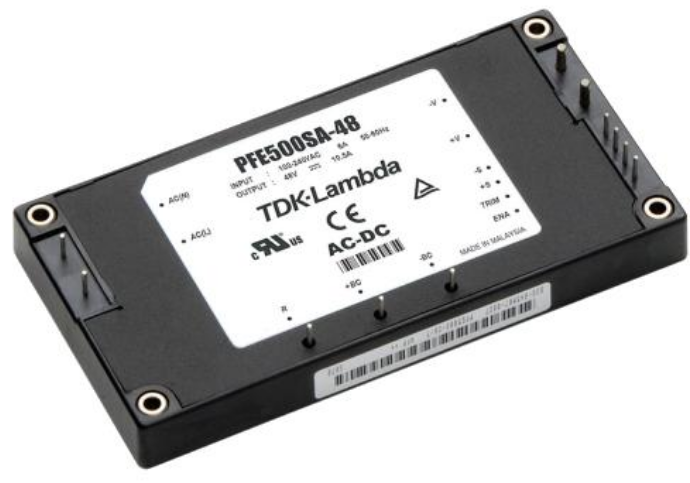

I. Appearance and mechanical structure

Packaging: standard full brick module, metal base plate (thermal conductivity and heat dissipation, must be equipped with a heat sink), black plastic casing, 4 corners with installation and fixing holes

Dimensions: 116.8 × 61 × 12.7 mm; The weight is about 200g.

Interface: AC input pin on one side, DC output pin on the other side, through-hole pin welded on the PCB board; Top surface sticker with parameter nameplate label

Heat dissipation method: base plate conduction heat dissipation, no built-in fan, the base plate must be attached to the heat sink, cannot naturally cool TDK Produc...

2. Core electrical parameters

input

AC input: 85-265VAC, 47-63Hz, built-in PFC, power factor > 0.9

output

Rated output: 28VDC/18A, maximum power 504W

Voltage adjustable: 22.4-33.6VDc (-20% ~ +20%)

Typical efficiency: 89%, up to 90% at 230VAC input

Ripple noise: up to 280mVP-P

Protection mechanism (all built-in) TDK Produc...

OCP overcurrent protection: 105% rated current, automatic recovery, short-circuit self-recovery

OVP Over Voltage Protection: 125-145%, locked after protection, restart input to recover

OTP over-temperature protection: the base board triggers shutdown at 105-130℃ and restarts after cooling down.

⚠️Note: Parallel current sharing is not supported, TDK Produc...

III. Safety, Environment and Reliability

Certification: UL60950-1, EN60950–1, CE, RoHS compliance

Working board temperature: -40 ℃ ~ +85 ℃, over 85 ℃ need to reduce power use

Insulation withstand voltage: input to output 3000 VAC

Original factory warranty: 5 years, industrial-grade long life design

Note: The module body does not meet medical safety regulations and cannot be directly used in medical equipment.

IV. Analysis of advantages and disadvantages

✅advantage

Full brick standard pin definition, replacement compatibility is strong; Built-in PFC simplifies the EMI design of the whole machine

Wide input voltage, global power grid adaptable; The base plate is thermally conductive, suitable for sealed non-fans complete machines.

Full protection, wide temperature range, 5-year long warranty, high reliability of industrial equipment

The output voltage can be adjusted over a wide range, suitable for various 28V power supply loads.

Industrial control equipment, industrial communication equipment

28V power supply system, battery charging equipment

Military industry commercial complete machine, closed cabinet equipment, communication base station auxiliary power
