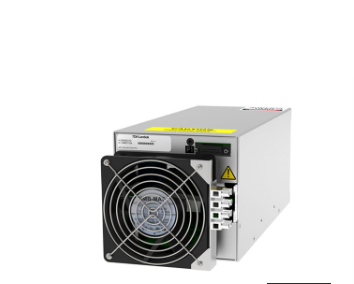

TDK‑Lambda ALE‑OEM Series 202A‑1.5KV‑POS‑PFC, 2000 W High‑Voltage Capacitor Charging Power Supply

2026-08-15 146

Item	Parameter
Input	Single‑phase AC 180‑254V, 47‑63Hz
Output Voltage	0‑1500VDC adjustable, rated 1500VDC
Continuous DC Output	1.33A, 2000W
Capacitor Charging Mode	Charging current: 2.93A; Average charging power: 2000J/s; Peak charging power: 2200J/s
Polarity	Positive output (POS)
Power Factor	0.98
Efficiency	Typical 85%
Cooling	Forced air cooling
Dimensions	W146 × H141 × D376 mm
Weight	Approx. 6.0 kg
Operating Temperature	‑20℃～+45℃
Storage Temperature	‑40℃～+85℃
Product Status	Mass production; sold worldwide except Japan

Functions

Designed for fast capacitor charging, also usable as a 0‑1500V programmable high‑voltage DC source.
Built‑in active PFC with low input harmonic distortion and high power factor.
Enclosed modular OEM power supply, intended for system integration; not a standalone bench‑top instrument.
Compatible with pulse systems for rapid energy storage of energy‑storage capacitors and high‑voltage DC output.

Laser Equipment: Flash‑lamp‑pumped lasers, pulsed laser power supplies, fast charging for energy‑storage capacitors.
Pulsed‑Power Systems: Marx generators, pulse‑forming networks (PFN), electromagnetic pulse test facilities.
Scientific Research & Test Equipment: Dielectric breakdown tests for materials, high‑voltage dielectric tests, electron‑beam / ion‑beam research equipment.
Industrial Testing: High‑voltage burn‑in tests, high‑voltage test fixtures.
Special‑Purpose Medical Equipment: Energy‑storage power supply for pulsed medical devices.
