SM6T33CA, STMicroelectronics Bidirectional TVS Transient Voltage Suppression Diode

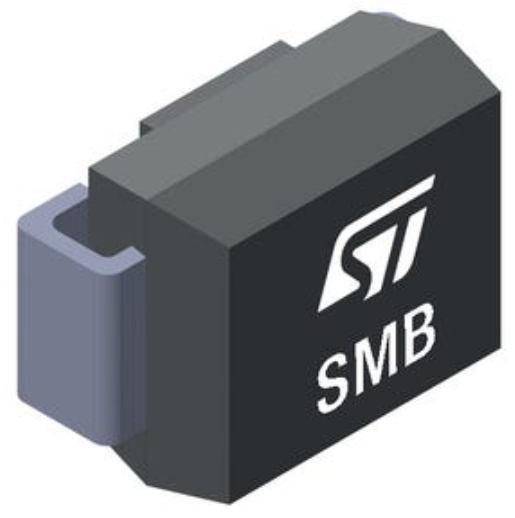

Peak Pulse Power: 600 W (10/1000 μs surge waveform)Reverse Stand-off Voltage (VRWM): 28.2 V (No conduction when operating voltage ≤ 28.2 V)Minimum Breakdown Voltage (VBR min): 31.4 VMaximum Clamping Voltage (VCmax): 45.7 VPeak Pulse Current (Ipp): 13.1 A (10/1000 μs)Polarity: BidirectionalPackage: SMB (DO‑214AA) SMD package

III. Application Scope

1) Automation Equipment Scenarios (Manipulators, RGVs, Conveyor Lines, Palletizing Robots)

Surge protection for 24 V DC power supply portsSurge protection on power input of control boards for RGV vehicles, assist manipulators and gantry cranes

Protection for bus communication linesESD and pulse protection for CAN bus, RS485 and LIN signal lines

Sensor signal port protectionProtection for signal ports of proximity switches, limit sensors and accelerometers

ESD protection for I/O ports on servo auxiliary control boards and PACK production line control boards
